Most of the dome functions are executed from a movable control console
(Engineering Console). The console is separated from the TECS-VME, and the
communication is provided via a wireless link which is independent from the VME system.
The use of a thick trailing cable as done in the former setup is thus not required
any longer. The Engineering Console is no longer linked to the TECS bus system and
communicates with the Dome/VME directly.
Through the use of the PCs, a lot of new possibilities are available now as a
certain intelligence has been assigned to the dome. All functions except
for those dealing the telescope maintenance platform are driven by means of the
PC program. The "dome automatic tracking" program which has been part of the old
TECS has been taken over by the PC.
The new VME system provides the
telescope elevation and azimut values only, through a serial interface.
The automatic telescope top ring change is now performed from the dome control.
The dome PC sends, through the serial interface to the VME system,the commands
to execute a change. The automatic front ring change is not yet fully tested and
will be implemented later.
The change of the dome control hardware to PCs has improved
the operations security and the failure diagnostics. Graphical displays are now
available which show the data communication between the TECS and the dome.
The Concept

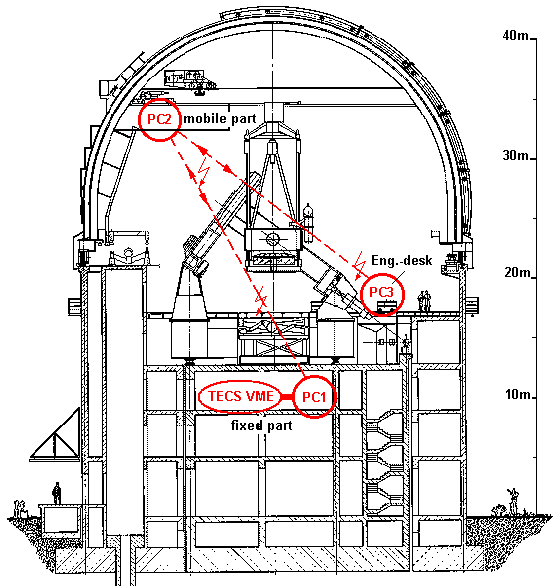

The control of the various dome functions is managed by three decentralized PCs.

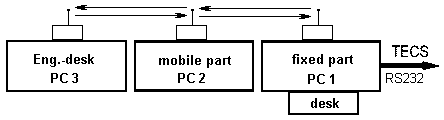

The PCs communicate with each other through a wireless link. Each PC sends,
continuously in one string, the respective complete system status.
Which one of the various PC programs is active depends on the kind of service
type that has been selected. The possible service types are:
- Only dome service (without TECS and Eng.Desk), PC1 and PC2.
- Astronomical service (dome tracking with TECS), PC1 and PC2.
- Engineer service with TECS (manual system change), PC1, PC2 and PC3.
- Engineer service without TECS (crane, dome rotation, gates), PC1, PC2 and PC3.
- Automatic system change with TECS, PC1 and PC2.
A major concern arose about the use of wireless communication. During the initial
phase of the project, various tests were carried out.
A first type of radio modems could not be used because of disturbances which were
caused by reflections at the dome walls. They had to be replaced by special radio
modems with operate at the low transmission power of 15 mW only. A redundant
communication system was devised. If the PCs encounter an interference, they switch
over to a second radio link in a different frequency band. The sequence is known as "Frequency-Hopping".
