User Guide to the CAFOS 2.2

Author: Klaus Meisenheimer, MPIA Heidelberg


Contents:


List of Figures:


List of Tables:


1. Overview

The Calar Alto Faint Object Spectrograph at the 2.2 m telescope, CAFOS 2.2, is a focal reducer which provides the facilities for
- DIRECT IMAGING
- SPECTROSCOPY with grisms and a longslit or multi-object masks,
- POLARIMETRY (direct and with grisms), and
- IMAGING through a Fabry-Pérot-Etalon.
As detector system serves the MPIA CCD camera. Instrument and CCD camera are controlled from a Graphical User Interfaces (GUIs).
Parallel to the data aquisition, a QUICKLOOK package runs on the same computer. It is based on MIDAS and includes two important features:
- Automatic data transfer from the CCD camera and conversion to MIDAS data frames, and
- REMOTE CONTROL of the instrument and the CCD camera.

Many Quicklook commands for instrument setup as well as online analysis of direct imaging and spectroscopic data are available. In addition fully automatic exposure sequences for focussing, calibration and observations are incorperated.

Layout of this GUIDE: This user manual gives a short description of the instrument, describes STARTUP and SHUTDOWN procedures, and lines out the operation by typical procedures for instrument SETUP and astronomical OBSERVATIONS.
At the end of this GUIDE there is an APPENDIX which summarizes important parameters and properties of the instrument and lists all commands.

2. Description and Status of the Instrument

2.1 The Focal Reducer / Spectrograph CAFOS 2.2

The imaging optics of the focal reducer consists of the collimator (f = 310 mm) which re-images the entrance pupil of the telescope in a secondary pupil of 40 mm diameter. A camera optics (f = 163 mm) focusses the beam onto the CCD detector (see Fig. A-1 in the Appendix). Thus the plate scale is reduced from 85.4 _m/arcsec to 45.32 _m/arcsec (i.e. from f =8:0 ! f =4:2). Since there is no space between the last lens of the camera (a biconcave field flattening lens) and the entrance window of the CCD dewar we had to place the shutter in front of the flattening lens, that is inside the instrument. A filter wheel with 12 positions (50 mm filter diameter) is placed directly in front of the shutter. The focus shift which is introduced by the filters is compensated by moving the main body of the camera (two tripletts and a single lens, see Fig. A-1) towards the secondary pupil. The instrument control automatically applies the appropriate focus shift when a filter is selected. In the collimated beam, near the pupil, 8 grisms can be moved in by rotation of the grism wheel (for their resolution and wavelength coverage see table A-1 in the appendix). In the grism wheel also a Lyot stop and a narrow pupil stop are available. In order to enable a narrow spectral resolution of extended objects and to reduce the sky background three different aperture mask can be inserted at the (first) telescope focus:
- (1) A longslit of tuneable width (30 . . . 1000 _m = 035 . . . 12") and a length of > 50 mm (= 9')
- (2,3) Two focal plane masks which can be inserted by the user (during the night) in order to do multi-object spectroscopy.

Both the movement of the aperture mask and the rotation of the grisms are controlled by very accurate (absolute) encoders. Thus any spectroscopic configuration is reproduced to a fraction of a 15 µ pixel (0.33 arcsec) even after a complete reconfiguration of the instrument (e.g. for direct imaging in between spectroscopic observations). The mechanical stability is such, that the overall flexure of the different components (e.g. aperture unit, mounting of the optics, chip holder, etc.) does not exceed 15 µ even for extreme positions of the telescope and is < 10 µ normally. Anyway an internal calibration unit containing 3 spectral lamps and a continuum lamp enable the wavelength and flatfield calibration at any telescope pointing.
Observations of standard stars and faint galaxies indicate that CAFOS 2.2 is atleast 3x faster than the B&S spectrograph at the 2.2 m telescope. The principal disadvantage of spectroscopy with the CAFOS 2.2 in comparison with the B&S spectrograph is the fact that you cannot view the slit with the TV guiding unit. Thus the objects have to be positioned on the slit by means of an acquisition exposure, followed by a "blind" offsetting of the telescope. For spectroscopy of faint objects (m>18) for which CAFOS is designed primarily this turns into an advantage, actually, since every object for which a decent spectrum can be obtained within a few hours will be visible on a 10 sec acquisition exposure without filter. The QUICKLOOK provides the necessary tools for the positioning.

Instrument Control:

Since July 1997 CAFOS is controlled by a Graphical User Interface (GUI). The updated version (January 1998) is much improved. Thus the Instrument Status should be more transparent.

New Optics:

The new optics has been installed in May 1996. All former problems are solved and the profiles of spectral lines do not change along the dispersion. They are exactly as sharp as the finite slit width permits.

CCD Detectors:

Currently, one CCD chip is available:

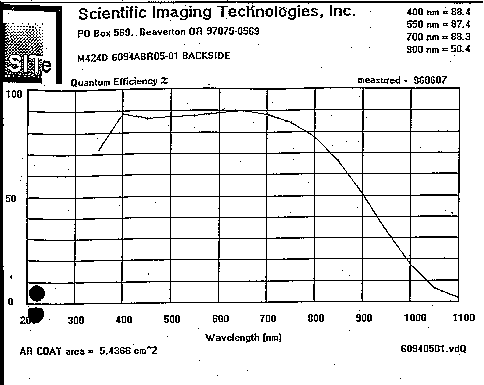

  • (i) The SITe-1d 2Kx2K chip (24µ pixel, i.e. 0.53"pixel). It provides the widest field (16' diameter) and the best performance regarding read-out noise and cosmetics. It is strongly recommend for most applications. This is currently the standard CCD for CAFOS2.2.
Two old CCD chips are no longer available:
  • (ii) The Lor-8o 2Kx2K chip (15µ pixel, i.e. 0.33"/pixel). This is an engeneering chip with many bad columns and dark spots. It provides a field of 11'x11'. ONLY useful for high resolution imaging at sub-arcsec seeing.
  • (iii) The Tek-13c 1Kx1K chip (24µ pixel, i.e. 0.53"/pixel). Backup only if none of the standard chips is available. No Quicklook support !

Special Modes:

(a) Imaging spectroscopy with Fabry-Pérot-Etalon:

In the collimated beam a unit containing a Fabry-Pérot-Etalon can be mounted (this is alternative to the polarizer unit, see (b)).
Although the Etalon needs the entire free space in the collimated part of the beam, the astronomer may switch between grism- and Fabry-Pérot -spectroscopy within about 20 seconds. The Etalon has a rather moderate resolution of 1.5. . . 2.3nm and a separation between adjacent orders of about 20x this value (30. . . 45 nm). Therefore, an order seperation filter of <30nm FWHM has to be used in the filter wheel. Currently only a "red" Etalon is available for CAFOS 2.2 which operates in the range 600 nm< &lambda >1000 nm. For calibration a special filter (793/14) has to be mounted in the filter wheel.

(b) Polarimetry and Spectro-Polarimetry:

For polarimetric observations the Fabry-Pérot-Etalon can be replaced by a polarizer unit consisting of a Wollaston prism and a rotatable, superachromatic &lambda/2 plate (for the entire optical band).
Imaging polarimetry in the entire field can be performed by moving in the polarizer and rotating the grism wheel to its free position. The beam separation between the two polarized images is 18". The background may be reduced by putting a mask with blank and black stripes (18" blank, 18" black, 18" blank, and so on) into one of the mask holders in the aperture unit.
Since the polarizer unit can be combined with any of the 8 spectroscopic grisms the instrument is fully equipped for spectro-polarimetric observations.

2.2 The new CCD camera: MPIA-System

Since May'96 CAFOS 2.2 is equipped with a new CCD camera electronics which has been designed and built in the electronic lab of the MPIA. Together with the CAFOS GUI also the new GUI controled CCD camera has been installed. This system allows much more interaction between the main components of the entire system (telescope, TV guider, CAFOS 2.2 and CCD camera).
The GUI is much more user-friendly than the old control system ccdacq which run in an IRAF enviroment. The most notable improvments are:
  • Simple and quick handling from the graphical user interface,
  • quick and error-proof switching between different (pre-defined) CCD configurations (e.g. binning, read-out area, read-out speed) by a mouse-click,
  • data are stored as FITS files on disk, which allows quick access to any datareduction package,
  • short exposure times down to 0.1 sec.
In order to allow a quick inspection of the data and a first analysis during a (next) exposure, the data can automatically be transferred to a seperate QUICKLOOK session which runs under MIDAS. Several simple commands are provided which should allow also astronomers who are not familiar with MIDAS to visualize and pre-analyse their data.

3. STARTUP and SHUTDOWN procedures

STARTUP

Switch on the HARDWARE:
  • 1. Make sure that the transmission electronics is on.
  • 2. Switch on the CAFOS electronics at the instrument.
    (If you are to the North of the telescope, facing the instrument, it is the box on the RIGHT hand side of the instrument.)
  • 3. Switch on the CCD electronics (box on the LEFT hand side of the instrument).
Login onto ultra3:
    username: obs22
    password: (ask the staff)
Wait for startup of OpenWindows. Besides the Virtual desktop, four windows will appear on both the lower and the upper screen:
    Console
    2 XTERMS on the lower screen
    1 XTERM on the upper screen
To start up the whole system you basically need only one of the XTERMs on the lower screen. You have to start the following 4 (optional 5) processes from this XTERM:
  1. You start the CAFOS control GUI by:

      ultra3[obs22]> start_cafos

    This will first display the (old) CAFOS Control Window and show you the actual SETUP and STATUS of the instrument. In this window you can use any CAFOS command as in the old version ! After 10 seconds the CAFOS GUI will show up on the left of the lower screen.


  2. (a) Before you start the CCD control at the beginning of your observing run you should create a personel directory on which your images are stored in FITS format:

      ultra3[obs22]> cd /disk-c/obs22_images/
      ultra3[obs22]> mkdir myarea
      ultra3[obs22]> cd (brings you back to /disk-a/obs22)).

    (b) Now you may start the CCD control by

      ultra3[obs22]> start_ccd

    After a while, the CCD Control GUI should pop up.

    (c) Before you start the first exposure you have to define the path for storing your images: use > Change Output-Filename.



  3. Since SAOIMAGE without running IRAF is almost useless for the observations, you have to start the MIDAS QUICKLOOK:

      ultra3[obs22]> quick

    This opens the MIDAS session foreground window on the lower screen and create both a DISPLAY window for image display and a GRAPHIC window for line plots on the upper screen. You may use any MIDAS command plus some simple quicklook commands which are designed to provide a fast estimate of the data quality or help to set up the observations. Make sure that SAOIMAGE is disabled (use >Utilities → Quicklook)

  4. After the midas001> prompt has arrived in the Foreground window, you have to start the CCD Receiver which automatically transfers any new CCD image into MIDAS format. This should be done from the main XTERM by:

      ultra3[obs22]> receive

    The window of the MIDAS Background Receiver process will appear on the upper screen. Every new FITS file will automatically be converted into a MIDAS frame, BIAS will be subtracted and ADUs will be converted into detected photo-electrons. Some statistical analysis will automatically set useful cuts for displaying the image.

  5. (Optional) There exists the possibility to run automatic exposure sequences ("high level commands") from MIDAS. Some of these "high level" commands even interact with the TV guider. See Appendix E how to establish the connection. In order to proceed with the data analysis in the MIDAS foreground these sequences should run in another background session (e.g. midas> FFSEQ/DUSK). Again, this should be started from the main XTERM by:

      ultra3[obs22]> expo

    The window of the MIDAS Background Exposure process will appear on the upper screen.
    The high level commands started in the Foreground window (e.g. FFSEQ/dusk will send a request to the Exposure Background which will run them without halting the Foreground monitor.

  6. At the beginning of your observing run you should make sure that the Instrument Setup of CAFOS 2.2 is correct (see section 5. for details).

O.K.: now you are ready for observing !


SAVE of CCD-data on DAT:

For tape copies you have to use the ultra3 DAT drive in the computer room on the first floor. You may either use tar or the fitscopy which produces a standard FITS tape by using the unix: dd command (if fitscopy is not known to your process you have to install it by: ultra3> getastro caha). Type
    ultra3> fitscopy (no parameters)
to get an explanation how to use the procedure.

SHUTDOWN

  1. The QUIT button in the CAFOS GUI is not fully operating! Thus, at the end of the observations you should set CAFOS into its sleep configuration by FREE ALL and only after execution >QUIT.
  2. Leave the CCD control by QUIT.
  3. Leave the MIDAS session by

      midas02> bye
      ultra3> logout

    and QUIT (both) Background window(s) with the mouse.

4 How to Operate the Instrument

Astronomical observations with the CAFOS 2.2 require that one operates three components, the control of which is distributed between three programs (CAFOS and CCD GUIs and MIDAS Foreground on lower screen):
    (1) the focal reducer / spectrograph CAFOS 2.2
    (2) the CCD-Camera including the shutter,
    (3) the Quicklook (MIDAS foreground and background sessions).
Although most astronomical observations require to operate the three components jointly, in the following the operation of each component is described seperatly. You may get a better idea of the operation of the entire system by reading through the procedures for instrument setup and typical observing procedures which are given in sections 5 and 6.

4.1 Operating CAFOS 2.2

General Remark: The CAFOS GUI is based on standard tools provided for the EPICS data base. Select windows (e.g. >Filter) have to be clicked with the RIGHT mouse button. An important "feature" of the system is that it will not take any action when the user tries to change to a position which has already been reached previously. Since CAFOS can be controlled remotely the data base sometimes only "thinks" that e.g. the filter Red is in while in fact Blue is in the beam. So, always check the instrument status whether your selection caused any action. If not you have to choose another item and then go back to the one you really want.
As outlined in section 2.1 CAFOS 2.2 consists essentially of 6 components:
  • The focal reducer optics - collimator and camera. The internal focus of the instrument is adjusted by moving the camera lens towards (focus value increasing) or away from the secondary pupil image. There are three operations which affect the focus:

      - changing the filter: >Filter adjusts the focus,
      - directly setting the focus: >Positions → Focus,
      - setting the zero value fo: >Setup.

  • The shutter which is mechanically a part of CAFOS 2.2 but is controlled by the CCD Acquisition (see 4.2, below).

  • The filter wheel. Selection of filters is done by:

      > Filter → abc
      will move in filter abc and adjust the camera focus to the value f0 + df where the focus offset df > 0 is defined in the table filter.tab

    The definitions in the actual filter table filter.tab have still to be changed in the old CAFOS text window by:

      cafos> FTAB which asks for the filter names and characteristics as well as for the focus offset which has to be determined in advance of the observations (see section 5).

      cafos> FILTER ? displays the list of filters

  • The aperture masks which are contained in the aperture unit. They are choosen in the

      > Aperture selection.
      There are 4 positions: FREE, SLIT, MASK-1, MASK-2. An additional HOLE of 50µ diameter can be used for focussing and setup.

    The width of the the longslit SLIT can be adjusted by:

      > Controls → SLIT which opens up a Slit width control window. The width can be adjusted between 50 and 999 µ (i.e. 0:6" to 11:7" )

  • The spectral and polarimetric analysers which may be inserted into the collimated beam between the collimator and the camera. In the standard configuration you have 8 grisms available which are selected in the

      > Grism selection.
      At the same position (pupil image) a Lyot stop and a very tight pupil stop (only for coronographic imaging) can be inserted.

  • In front of the focal reducer there is a calibration unit installed which consists of 4 calibration lamps (3 spectral, 1 continuum) and a movable mirror to reflect the light into the instrument. You may choose the appropriate calibration by

      > clicking onto on/of the lamp buttons.
      WARNING: presently the Mirror has to be removed seperately after switching off the lamps (press OUT button below the lamps).

Besides the standard configuration the observer can choose (well before the observing run) between two non-standard configurations:
    - Imaging spectroscopy with a Fabry-Pérot-Etalon (see section 4.1.1 for details of operation), and
    - Imaging polarimetry and spectro-polarimetry through a &lambda/2 plate and a Wollaston prism (see section 4.1.2).
In addition to these optical components and their operation, the instrument control provides several general commands which help to operate the instrument:
    FREE ALL will move everything out of the beam,
    REMOTE "ON'' sets CAFOS in REMOTE control (to accept commands from other programs (e.g. QUICKLOOK)
    REMOTE "OFF'' sets CAFOS back to direct control.
    HELP will provide some help (not implemented yet)
Another set of commands are designed to enable the setup of the instrument before the astronomical observations. They mainly serve to align the optical setup of the instrument, to adjust the instrument focus and define basic instrumental parameters which are used in the instrument control and the Quicklook analysis:
    > Positions → Positioning
    allows to position the Aperture unit to 1 micron and the Grism wheel to 0.02 degrees
    Setup → SETUP
    define Instrument Setup (see section 5).

4.1.1 Operation of the Fabry-Pérot-Etalon

Final description has to be written when the control software is finished (the Etalon did not operate in the last commisioning run). There are two quicklook commands which allow to calibrate the Etalon:
    midas> CSEQ/ETA
    starts a sequence of calibration exposures (using the focus-sequence in ccdacq). Follow the instructions on the screen.
    midas> CALIB/ETA [image]
    analyses the calibration exposure.

4.1.2 Operation of the polarizer unit

The polarizer unit (which can be mounted alternatively to the etalon) consists of a Wollaston prism with fixed beam separation (18.9 arcsec N-S) and a rotatable &lambda/2-plate. It is moved in by pressing the IN/OUT button. The position angle is controlled in the Polarizer window which can be opened by
    > Controls → POLARIZER
    Changing the position angle will move in the polarizer unit (if not in).
    polarizer IN/OUT removes the polarizers from the beam.

4.2 CCD Adquisition

The CCD control is documented elsewhere (web). What you urgently need to know is the following:
  • There are two types of exposures:

      - test exposures are all named test0001[.fits]. Thus any new test exposure overwrites the previous one.
      - normal exposures are named according to the convention defined in Output-Filename: >Change
      The number of every new exposure is incremented by 1. For the standard use of the MIDAS Quicklook this mode is recommended.

  • Although you could use SAOIMAGE as Quicklook system (with very limited capabilities) a full operation of CAFOS with all its facilities requires the automatic data transfer to the MIDAS Quicklook.
    CCD: >Utilities →Quicklook set Quicklook to "other".

  • The quick change between different CCD configurations (binning, read-out area, etc) is done by loading pre-defined

      Configuration files

    (Currently, standard configuration files are only available for the SITe-1d chip. Use show *SITe.par to see them only.)

4.3 Quicklook

The QUICKLOOK system is based on the standard data reduction package MIDAS (Munich Image Data Analysis System, current Version: Nov 1996). It therefore provides all standard MIDAS commands including those of the context longslit.
In order to provide both the CAFOS user who is not familiar with MIDAS and the MIDAS expert with a quick and simple check of the quality of the incoming data and to set up the observations several special QUICKLOOK commands are installed: They can be devided into three groups:
    (1) Commands for the quick inspection of incoming data.
    (2) Commands to set up the instrument and/or support the observations (eg. sequence of focus exposures, routines to place an object onto the slit). These also include the possibility to perform any CAFOS command from the MIDAS monitor.
    (3) Commands which start automatic exposure sequences.

4.3.1 Quicklook commands for data inspection

In all following commands the default image is the last received image. So any command without specifying the image will work on this last image !
IMPORTANT NOTE: If you use test images you should specify image = test0001 !!!
    midas> check[/image] image
    is designed to give a first idea about the quality of (direct imaging) data. It gives the number of photons received per pixel and checks whether the data are read-out limited.
    midas> inspect[/image] image
    displays image on the upper screen, using standard "cut" values derived from the background noise. Modification of the standard display can be selected by the keys C (=cuts), Z (=zoom) and L ("lookup", that is color table).
    midas> look[/image]
    permanently displays the last image on the screen. It has to be stopped by ctrl-C !
    midas> clear/ccd
    "clears" the CCD Receiver (for instance if frames have been send but not received since the Receiver was off).
More advanced quicklook commands are:
    midas> focus<[/image] image
    evaluates a series of focus exposures (see FSEQ/par below) to find the optimum focus value.
    midas> seeing[/image] image
    measures the seeing on a direct image (and saves the result in a SEEING log).
    midas> photometry[/image] image
    measures the magnitudes on a direct image. Standard Star magnitudes can directly be compared with tabulated values in order to judge the photometric quality of the night.
    midas> spectrum[/image] image
    carries out a quick extraction, wavelength and flux calibration of spectroscopic observations.

4.3.2 Quicklook commands for instrument setup and observations

As an optimum focus of the entire system (telescope + CAFOS22) requires to focus each of them separately, there are two commands to perform a SEQUENCE of focus exposures:
    midas> fseq/cafos
    carries out a focus sequence for the instrument (different setting of the CAFOS focus). The procedure is semi-automatically (please follow the instructions on the screen !)
    midas> fseq/teles
    carries out a focus sequence for the telescope (different setting of the Telescope focus). The procedure is semiautomatically and controlls the telescope focus and off- set (please follow the instructions on the screen !)
These focus exposures can be evaluated with:
    midas> focus image
    analyses focus exposure.
To help with an efficient aquisition and object centering on the slit there are the following commands:
    midas> offset/slit image
    enables to mark an object on an aquisition exposure image. The offset between this object and a (clean) position on the longslit is calculated. The necessary telescope offset can automatically be performed and the centering can be checked by a control exposure.
    midas> offset/axis image
    works essentially like offset/slit. But the object of interest is centered on the optical axis of the instrument.
    midas> offset/polar image
    Similar offset/slit but for the spectropolarimetric Slit mask or the Multi-stripe Mask for imaging polarimetry.
NOTE that all offset commands DEMAND that the instrument parameters have been SETUP properly (see next section!)
User-written sequences which include both the control of the instrument and/or the telescope (relativ offsets and focus) are enabled by:
    midas> cafos[/ima] cmd par
    where cmd is any CAFOS command (see 4.1) with its parameters par. CAFOS2.2 has to be set to REMOTE before the command is issued.
    midas> cafos[/ima] local
    sets CAFOS2.2 back to interactive input.
IMPORTANT NOTE: If any of the Quicklook commands listed in this paragraph is aborted (eg. by cntrl-C or a wrong input) you have to switch REMOTE OFF to set the instrument back in interactive mode !

4.3.3 High Level Commands

To optimize the exposures of Twilight Flat Fields there exist automatic exposure sequences which determine the level of the twilight sky, wait for the appropriate brightness and then expose a sequence of Flat Fields in one filter:
    midas> FFseq/dusk parameters
    automatic sequence for Flat Field Exposures. The program waits until a sufficently dark sky level is reached an then exposes N frames, taking into account the dimming of the twilight.
    midas> FFseq/dawn parameters
    As FFseq/dusk but for morning twilight (increasing brightness !).
The high level commands are only working if the Background Exposure process has been startet (see Startup, Step 5)

4.3.4 Some Standard MIDAS Commands

There are some simple standard Midas commands which are worth to know:
For image display:
    midas> load[/ima]
    loads image on display
    midas> load/ITT itt
    loads Intensity Transfer Table (useful are: itt = ramp, neg, log)
    midas> load/LUT lut
    loads Look Up Table. Try: ramp,heat, rainbow3
    midas> display/chan n
    switch to another display channel, n =0; 1; 2; 3
For image analysis:
    midas> stat[/ima] ima CURSOR
    Simple image statistic in area interactively chosen with cursor. Default image (i.e. ima = ?) is the actually displayed image.
    midas> get/cursor
    allows to measure coordinates image display
    midas> center/gauss
    measures accurate positions and width of objects on the displayed image.
Hardcopy on printer:
    midas> copy/display laser_c
    prints a hardcopy of the actually displayed image on laser c
    midas> copy/graph laser_c
    prints a hardcopy of the graphic window on laser_c
Please use the MIDAS Manual or "midas> help" command for a full description.

5 Instrument Setup

For a complete instrument setup (from scratch) several steps have to be carried out. Some of them can be omitted if the instrument has been used in the same configuration before. The most important steps are:
    (1) Align the rows of the CCD along the longslit.
    (2) Determine the position of the optical axis on CCD detector.
    (3) Determine the exact instrument focus.
    (4) Setup the instrument with the actual parameters.
    (5) Determine focus offset for each filter. Only necessary for filters which have not be used before.
    (6) Define the filters in the filter wheel and their focus offsets.
If either the grism wheel or the aperture unit have been removed from the instrument and every two months, the Calar Alto staff should
    (7) Check alignment of grisms (dispersion along columns of the CCD).
For spectroscopy with the longslit or with multi-object masks you may have to
    (8) Determine the exact position angle of the instrument.
Important note: The correct FITS header of your data and many QUICKLOOK commands (eg. offset/slit) depend critically on the correct Setup of the instrument parameters (step 4). Although the instrument setup is normally done by the staff, it is recommended to check the setup parameters at the beginning of your observing run (>setup).

On the following pages it is described briefly how the steps (1)-(8) should be carried out in practice. (A more detailed version for internal use of the Calar Alto staff will be provided soon.) The description of the setup procedures assumes that the complete STARTUP procedure (see section 3, steps 1.-4.) has been carried out. The prompt before each command indicates in which control program (terminal window) the command has to be given, for example:

cafos: >abc →xyz choose xyz in selection window >abc of CAFOS 2.2 control GUI
CCD: def press def in CCD control window
midas> ghi start command ghi in MIDAS foreground

5.1 Align rows of CCD along longslit.

For aligning the CCD it is sufficient to set the instrument focus f0 to the nominal value for each chip which can be taken from the following table:
Table1: CCD parameters
Chip ID f0
[µ]
field lens
[mm]
pisel size
[µ]
columns x rows scale
[µ/arcs]
CAFOS angle
[degree]
Site-1d 800 +2.1 24.0 2048 x 2048 45.32 0
Lor-8o 700 +1.9 15.0 2048 x 2048 45.43 180
Site-xx     15.0 2048 x 4096 ? ?
Tek-13c 1100 +2.3 24.0 1024 x 1024 45.3 0
Currently, the slit-image which is required for aligning the CCD has to be taken "by hand". Although an automatic procedure is in preperation it is instructive to read through the following procedure step by step.
  • Set standard value f0 from table 1:
      cafos:    >Setup → SETUP and set FOCUS = f0
  • Setup Cafos 2.2 for slit alignment:

      cafos:    >FILTER → free    use no filter.
      cafos:    >GRISM → free    use no grism.
      cafos:    He ON    switch on He lamp, move in mirror.
      cafos:    >Controls → Slit    open slit control window.
      cafos:    in Slit: set width → 100    adjust width to 100 µ, move in slit.

  • Setup and start exposure:

      CCD:    >load Configuration    open select window
      CCD:    select slit_SITe.par    slit exposure
      CCD:    define object name    e.g. Slit-100
      CCD:    define tint = 1 sec    optimun integration time
      CCD:    press START

  • Wait until the image is received by MIDAS (*image abc.bdf received* will occur in Background Receiver window on the upper screen). Then display image:

      midas>    INSPECT    you may adjust the cuts

  • Measure coordinates of the slit image:

      midas>    CENTER/GAUSS    adjust cursor box by arrow keys, click with left mouse-button near the right and the left edge of the slit image, leave procedure with the right mouse button. Mark a slightly different position if an error message ("iteration failed") occurs.
      Then calculate:
      d = (Yleft - Yright) / (Xleft - Xright)
      The adjustment screws at the dewar mounting have to be changed by 125 x d full revolutions to correct the mis-alignment d. For d > 0: rotate dewar counter-clockwise (as seen from below for SITe and LORAL, clockwise for the Tek#13.)

  • Repeat exposure and measure orientation again. Normally you need 2 iterations to adjust the CCD to d < 1/2000. Make sure that fixing the screws does not cause new mis-alignment in the end !

5.2 Determine the position of optical axis on chip.

With the new optics of the CAFOS2.2 and an accurate adjustment of the field flattening lens (see seperate manual Setting up CAFOS2.2) there is no need to measure the instrument scale which is 45.32(± 0.1) µ/arcsec (= ± 0.2%, see Table 1) So one only has to determine of the optical axis on the chip. This is done in the following way:
  • Setup Cafos 2.2 for Hole 0 exposure:

      cafos:    >FILTER → free    use no filter.
      cafos:    >GRISM → free    use no grism.
      cafos:    He ON    switch on He lamp, move in mirror.
      cafos:    >Aperture → Hole    moves hole to reference position = Hole 0

  • Setup and start exposure:

      CCD:    >load Configuration    open select window
      CCD:    select hole=_SITe.par    hole 0 exposure
      CCD:    define object name    e.g. "hole_0"
      CCD:    define tint = 1 sec    optimun integration time for SITe-1d
      CCD:    press START

  • Wait until the image is received by MIDAS (*image abc.bdf received*) will occur in background window). Then display image:

      midas>    INSPECT    you may zoom by factor 2.

  • Measure coordinates of the hole image:

      midas>    CENTER/GAUSS    click with left mouse-button, leave procedure with the right mouse button.
The position of the central hole image is required in the instrument Setup (5.4) in order to calculate the position of the optical axis and the longslit image on the chip.

5.3 Determine the exact focus of the instrument.

With the new system focus sequences and their evaluation are extremely simple. All you have to do is:
  • Start focus sequence by

      midas>    fseq/cafos    and follow the instructions. It is recommended to chose filter = f(ree). You should place your focus sequence around the nominal value given in Tab. 1

  • Wait (about 5 sec) until the image is received by MIDAS (*image abc.bdf received * will occur in background window) and analyse the sequence by:

      midas>    focus    analyse focus exposure. Result = f0
      midas>    focus test0001   should be given when using test mode for focussing.

      The value f0 has to be set in the following Setup.

5.4 Setup the instrument with the actual parameters

This step is essential in order to produce correct FITS headers !
You have to carry out steps 5.1 to 5.3 first. Then the instrument is correctly set up in the SETUP window:
    cafos:    >Setup → SETUP    where you have to define the following parameters:
    FOCUS    without filter    f0    as determined in 5.3
    GRISM    position offset    &gamma0    leave as it is or see 5.7 below.
    Hole 0    position on chip    X,Y =    give X,Y coordinate of hole 0 image on chip (as determined in 5.2).
    SCALE    at Intrument focus       [µ/arcsec], use value from table 1.
    Exact Instrument P.A. =      should be 0± 1 [degree] or 180± 1 depending on chip (see table 1).

5.5 Determine focus offset for each new filter.

(Only necessary if the filter has not been used previously and its focus offset is not documented in the Appendix A.1 or the Calar Alto filter list.)
  • Start focus sequence by
      midas>    fseq/cafos    and follow the instructions. The expected focus value is f0 +df. The focus offset is roughly df = 357 x d where d is the geometrical thickness of the filter in mm. You should place your focus sequence around the expected value.

  • Wait until the image is received by MIDAS (* image abc.bdf received * will occur in background window). Then you may analyse the focus sequence by:
      midas>    focus    analyses focus exposure. Result = f

  • After having determined the optimum focus value f for the filter you have to calculate the focus offset:
    df = f - f0

5.6 Define filter parameters.

Before starting your observations, you should update the actual table of filters (filter.tab) which are mounted in the filter wheel. Unfortunately this has still to be done in the old CAFOS Text window:
    cafos>
      FTAB    command to update parameters of filter in wheel. For each filter you have to define:
        - lambda-0:    central wavelength (nm); refer to the CA filter list!
        - delta-lambda:    width of the filter (nm),
        - df:    focus offset df = f - f0 (as determined in 5.5 or taken from the CA filter list).
        ATTENTION: Although focus values are measured in µm, FTAB expects df in mm ! (sorry for this).
        filter-ID : Filter identification; it is recommended to use the name from the CA filter list.
    Note: You may use cafos> $ more filter.tab to see actual table.
At the moment it is necessary to restart the CAFOS control in order to get the new filter names in the >Filter selection window:
    ultra3[obs22]> start_cafos
O.K., now the instrument is setup properly for most astronomical observations.

5.7 Check alignment of grisms (optional).

This should be necessary only if either the aperture unit or the grism wheel have been removed from the instrument. But after we found some unexpected misalignments we recommend to check the grism alignment every months or so.
  • Setup Cafos 2.2 for grism check:

      cafos:    >Filter → free    No filter.
      cafos:    >Grism → green-100    green-100 has broadest efficiency.
      cafos:    He lamp OFF    (if still ON).
      cafos:    Co lamp ON    Continuum lamp can be dimmed at power supply, make sure it is at 100%
      cafos:    Aperture → HOLE    move in 50 µm hole.

  • Setup and start spectroscopic exposure:

      CCD:    Load Configuration:    spectrum SITe.par
      CCD:    Object name:    grism check
      CCD:    time:    20 sec
      CCD:    Type:    flat
      CCD:    START

  • Wait until the image is received by MIDAS (* image abc.bdf received * will occur in background window). Measure coordinates of the slit image:

      midas>    CENTER/GAUSS    adjust cursor box by arrow keys, click with left mouse-button in the upper and lower part of the spectrum, leave procedure with the right mouse button. Mark a slightly different position if an error message ("iteration failed") occurs.
        - calculate: &gamma = atg[(Xupp - Xlow) /(Yupp - Ylow)]
        - if |&gamma| ≤ 0:03o: O.K., no further action requiered,
        - else:

  • Adjust Grism angle offset:

      cafos:    >Setup → SETUP    and set GRISM position offset to: &gamma0 = &gamma0(old) - &gamma

5.8 Determine exact position angle of instrument (projected at sky).

Only in case you need to align the longslit or a mult-object mask on the sky to <0:3o (that is <1:6 arcsec over a length of 5') you have to carry out this step
STARTLIGHT required !
  • Select full SITe.par and do two exposures and move the telescope in between them by ≥500" in DEC.
  • Measure position angle of the displacement of a star which is common to both images:
      midas>    CENTER/GAUSS    adjust cursor box by arrow keys, click with left mouse-button on star, leave procedure with the right mouse button.
      midas>    INSPECT image2    load second image.
      midas>    CENTER/GAUSS image1    make sure you mark the same star!

  • Calculate position angle

      &alpha = atg((y1 - y2)/ (x1 - x2)),
    where x1, y1 refers to the coordinates on the image pointed at lower Declination (that is x1 - x2 > 0 ! ).
  • Adjust Instrument Position Angle:

      cafos:    >Setup → SETUP    and set Exact Instrument P.A. = &alpha

5.9 Calibration of the Fabry-Pérot-Etalon

You have to mount the pre-filter 793/14 in Filter wheel !
  • Setup CAFOS 2.2 for Etalon calibration:

      cafos:    Rb lamp ON    THIS should be done 5 min before starting the calibration.
      cafos:    REMOTE ON    set CAFOS in remote control.

  • Start calibration sequence by:

      midas>    cseq/etal    and follow the instructions !

  • Wait until the image is received by MIDAS (* image abc.bdf received * will show up in background window). Then you may analyse the calibration sequence by:

      midas>    calib/eta    analyse calibration exposure.

  • Save the calibration:

      cafos:    >Controls → Etalon Calibration    allows to set Etalon calibration
      cafos:    in Calibration window:    set z0 = fitted value; set width = fitted value

6. Examples of Astronomical Observations

In order to demonstrate the standard operation of the instrument and how the different components (CAFOS 2.2, CCD Camera, Quicklook) can most efficiently be used together, in the following several observing procedures are outlined which should cover most of the standard applications of the instrument.

6.1 Determination of the telescope focus.

The approximate focus of the 2.2 m telescope with CAFOS 2.2 can be calculated according:
    ftel = 23.50 - 0.087 x Ttel
where Ttel is the temperature of the telescope structure in oC. A focus series around this nominal value should be sufficient to find the best focus. The following procedure will calculate the expected focus from Ttel.
  • Start focus sequence by

      midas>    fseq/teles    and follow the instructions! You may choose any filter for which df is known accurately. However, for a consistent seeing and focus statistic the use of a broad R band is recommended.

  • Wait until the image is received by MIDAS (*image abc.bdf received* will occur in background window). Then you may analyse the focus sequence by:
      midas>    focus    analyse focus exposure. Result = ftel ; if o.k. focus value and seeing are saved in SEEING LOG

    and do not forget to

  • Adjust the telescope focus to this new value !

6.2 Straight-forward Direct Imaging.

By "straight-forward" is meant that no exact telescope pointing is required. Normally, this is the case for the observation of standard stars/fields or other objects which are much smaller than the field of view (11x11 arcmin2).
  • Enter coordinates of object at Absolute Position window and point telescope by "eXec".


  • Setup CAFOS 2.2 for imaging:

      cafos:    FREE ALL    Remove everything out of beam.
      cafos:    >FILTER → myfilter    moves in required filter, adjusts focus.
      cafos:    >GRISM → Lyot Stop    recommended for imaging.

  • In the MIDAS Quicklook, you may start a procedure which displays the image immediately after being received:

      midas>    LOOK(/ima)    display image on arrival.

  • Define and start exposure:

      CCD:    >load Configuration    open select window
      CCD:    select full_SITe.par    entire usefull area
      CCD:    define object name    e.g. NGC4668
      CCD:    >define tint = xx sec    integration time
      CCD:    press START

  • Use MIDAS Quicklook to display and analyse image e.g.:

      midas>    INSPECT(/ima)    allows to select dynamical range (called "cuts" in MIDAS), look-up table, ZOOM, etc
      midas>    SEEING(/ima)    analyses the seeing accross the field.
      midas>    PHOTOMETRY(/ima)    allows to measure AB magnitude of objects

6.3 Photometric Standard Star Observation.

This is normally a straight forward imaging exposure. The only problem is that the exposures have to be short enough to avoid saturation of (brighter) standard stars. If you use a broad band filter, typically a 12th magnitude star is (just) saturated after 5 seconds (at 1.2" seeing). Exposure times of 1 second are no problem if the star is within 3' of the field center. In order to judge the photometric quality of the sky, the CAFOS Quicklook has stored AB magnitudes of the following standard stars (finding charts can be found in the HST Standards Book ). When using the command midas> photometry the tabulated values are compared with the measured one in any filter (provided the central wavelength and width of the filter have been carefully defined in cafos> FTAB).

HST (spectro-photometric) Standard Stars for CAFOS (most of them very blue):

Star RA (2000) DEC (2000) AB (650nm)
GD 50 03 48 50.1 -00 58 30 14.499
Hz 4 03 55 21.7 +09 47 19 14.800
Hz 2 04 12 43.5 +11 51 50 14.198
G 191 B2B 05 05 30.6 +52 49 54 12.156
BD+75 325 08 10 49.3 +74 57 58 9.886
GD 108 10 00 47.3 -07 33 31 13.898
Feige 34 10 39 36.7 +43 06 10 11.496
Hz 21 12 13 56.4 +32 56 31 15.093
Hz 44 13 23 35.4 +36 08 00 12.019
GRW+70 5824 13 38 51.8 +70 17 09 13.108
BD+33 2642 15 51 59.9 +32 56 55 11.024
BD+28 4211 21 51 11.1 +28 51 52 10.850



Proceed as follows:
  • Enter coordinates of star at Absolute Position window and point telescope by "eXec".

  • Setup CAFOS 2.2 for imaging:

      cafos:    FREE ALL    Remove everything out of beam.
      cafos:    >FILTER →myfilter    moves in required filter, adjusts focus.
      cafos:    >GRISM →Lyot Stop    recommended for imaging.

  • Define and start exposure:

      CCD:    >load Configuration    open select window
      CCD:    select full_SITe.par    central 6x6 arcmin2
      CCD:    define object name    e.g. HZ 44
      CCD:    >define tint = 2sec    avoid saturation
      CCD:    press START

  • Wait until image is received and use MIDAS Quicklook to display and analyse image:

      midas>    PHOTOMETRY(/ima)    Mark the standard star with cursor box. Use right mouse button to proceed. The routine will evaluate the counts and convert it to instrumental AB magnitude which should be correct to within 0.1. It is subsequently compared with the tabulated value.

6.4 Direct imaging with accurate pointing.

Due to distortions of the plate scale near the edges of the field (see Fig.3 the Appendix A), images can only be co-added if the telescope pointing agrees within ≤30". Therefore (or to place very extended objects in the field of view) it may often be required to point the telescope to better than a few arcseconds. Since this is not guaranteed by the standard telescope preset one needs to get an acqusition exposure on the basis of which the telescope then is offsetted to the recommended pointing. A procedure in the MIDAS Quicklook calculates and performs the required offset. During the procedure, the observer has to select an object on the acquisition exposure and to specify the coordinates (with respect to the optical axis) where the object should occur after the telescope offset (the current version does only allow to place the selected object right onto the optical axis).
  • Use standard configuration: Cassegrain position angle = 90o

  • Enter coordinates of object at Absolute Position window and point telescope by "eXec".

  • Set CAFOS 2.2 in remote control:

      cafos:    REMOTE ON    Remote control from MIDAS


  • Search guide star in TV offset field and start autoguider (see instructions of tvg).

  • Define and start acquisition exposure:

      CCD:    >load Configuration    open select window
      CCD:    select full_SITe.par    central 6x6 arcmin2
      CCD:    define object name    e.g. 3C273.aq
      CCD:    >define tint = 50sec    50 sec are sufficient to reach V > 23 with Filter = free.
      CCD:    press START


  • After exposure is finished wait until the image is received by MIDAS
    (* image abc.bdf received * will show up in background window).

  • Inspect acquisition exposure, identify reference object and offset telescope by the Quicklook command:

      midas>    OFFSET/AXIS    Follow the instructions on screen !

    Do not forget to re-start the AUTOGUIDER immediately after the telescope offset has been performed !!

  • Setup CAFOS 2.2 for your science exposure, for example when using the FP Etalon:

      cafos:    >FILTER →myfilter    moves in etalon prefilter.
      cafos:    Etalon: IN    moves etalon into beam.
      cafos:    >Controls →ETALON lambda    open window for setting wavelength and order.
      cafos:    define &lambda and order, and
      cafos:    press SET in window    adjust etalon to &lambda.


  • Define and start science exposure:

      CCD:    >load Configuration    open select window (if not open)
      CCD:    select full_SITe.par    entire useful field
      CCD:    define object name    e.g. 3C273.7666A
      CCD:    >define tint = 1000sec
      CCD:    press START


  • If more than 1 exposure is required (e.g. to remove the cosmics or to get a flatfield for the nightsky) you may offset the telescope in the telescope control GUI.

  • Restart AUTOGUIDER and start second exposure:

      CCD:    LAST NAME    get last object name
      CCD:    define object name    e.g. 3C273.7666A-2
      CCD:    >define tint = 1500sec    previous exposure too short!
      CCD:    press START


  • During the exposure you may use the MIDAS Quicklook to display and analyse the last image e.g.:

      midas>    INSPECT(/ima)    allows to select dynamical range (called "cuts" in MIDAS), look-up table, ZOOM, etc
      midas>    SEEING(/ima)    analyses the seeing accross the field.
      midas>    PHOTOMETRY(/ima)    allows to measure AB magnitudes of objects.


  • Repeat the last 4 steps with appropriate telescope offsets until you have reached the required number of exposures.
Alternatively, the Quicklook provides a high level command to define, start and continue a series of exposures. (In order to use this command you have to start expo, see item 5. in the STARTUP procedure.) The same exposure sequence as described above would be carried out as follows:
  • Define and start first science exposure:

      midas>    NEXT(/ima) start:1 1000.
      This will start the first exposure of the sequence. Exposure time (tint = 1000 sec) and header as in the example above. The fourth parameter (= 2.) refers to the Declination of 3C273 and is necessary to perform the offsets (before subsequent exposures) in the U,V-system. As soon as the exposure has been read out, you

  • start the next science exposure by:

      midas>    NEXT(/ima) cont 1500.

    This will perform a (pre-defined) optimal standard telescope offset, after which you have to

  • Restart the AUTOGUIDER

    When it runs properly, you quit midas> ... done > by <CR> to start next exposure (the header is automatically incremented). Use

      midas>    NEXT(/ima) cont

    until you have reached the required number of exposures.

    Note: After using the NEXT command, you have to switch REMOTE OFF to operate CAFOS again

6.5 Longslit spectroscopy with grisms.

Since the CAFOS 2.2 does not provide the possibility to view the slit and its surrounding field by the TV guiding unit it is necessary to position an object onto the slit by means of an acqusition exposure. With the new drives at the 2.2 m telescope, pointing and offsetting are sufficiently reliable, that the object is placed on the slit after the first iteration (if this is not the case you should check, whether the hole 0 position is correctly defined in the SETUP).
The aquisition + offsetting procedure is well tested for the standard position of the longslit (= N-S, that is Cassegrain position angle = 90o), but the "blind" offsetting works also if the longslit is rotated away from this position. The spectroscopic observations with CAFOS 2.2 should be prepared and carried out as follows:
  • Rotate Cassegrain flange to the requested position angle (use non-standard orientation PACass ≠90o only if absolutely necessary for your project).

  • If PACass ≠90o: Setup Telescope and CAFOS 2.2:

      Telescope Control: Settings set correct P.A. = p for guiding.

  • Select coordinates of object at Absolute Position window and point telescope by "eXec".

  • Select slit width and set CAFOS 2.2 into REMOTE control:

      cafos:    >Controls →SLIT    opens SLIT Control window
      cafos:    Choose slit width    changing the width will also move the slit into the field.
      cafos:    REMOTE ON    allow REMOTE control from QUICKLOOK.

  • Search guide star in TV offset field and start autoguider (see instructions of tvg).

  • Define and start aquisition exposure:

      CCD:    >load Configuration    open select window (if not open)
      CCD:    select full_SITe.par    ±2' around slit, or
      CCD:    select full_SITe.par    central 6x6 arcmin2
      CCD:    define object name    e.g. 3C273.aq
      CCD:    >define tint = 50sec    sufficient to reach V > 23.
      CCD:    press START

  • After exposure is finished wait until the image is received by MIDAS (* image abc.bdf received * will show up in background window)

  • Measure and perform required offset of telescope by the Quicklook command:

      midas>    OFFSET/SLIT    Follow the instructions on the screen !

    Do not forget to re-start the AUTOGUIDER immediately after the telescope offset has been performed !!

  • Setup CAFOS 2.2 for your spectroscopic exposure:

      cafos:    >GRISM → green-100    select e.g. grism Green-100
      cafos:    >FILTER → GG495    e.g. use order separation filter

  • Define and start spectroscopic exposure:

      CCD:    >load Configuration    open select window (if not open)
      CCD:    select spectrum_SITe.par    central 5' of longslit, or
      CCD:    select long_SITe.par    covers entire longslit, or
      CCD:    select full_SITe.par    entire field WITH OVERSCAN
      CCD:    define object name    e.g. 3C273.G100+GG495
      CCD:    >define tint = 1000sec
      CCD:    press START

  • Quick analysis of spectrum: Wait until frame has been received by MIDAS and use

      midas>    SPECTRUM(/ima)    subtracts background, extracts 1-dim. spectrum, does standard wavelength and flux calibration.

  • Although CAFOS2.2 is very stiff, for highest quality data analysis it is recommended to carry out a Flat Field exposure immediately after the science exposure. You should leave everything unchanged except switching on the continuum lamp:

      cafos:    Co lamp ON    switches on continuum lamp and moves mirror in.

  • For the most accurate wavelength calibration it is recommended to use a slit image (without grism !) as it is produced as verification in OFFSET/SLIT plus lamp exposures through a narrow slit (e.g. 50µm). See 7.2 for more details

7. Calibration Exposures

7.1 Flat Field exposures for direct imaging

Has still to be written !

7.2 Calibration exposures for spectroscopy

Has still to be written !

8. Trouble-Shooting

The complexity of the entire system - which consists of the CCD, the CAFOS2.2 and its control and the 2.2 m Telescope with its TV guider - may lead to mal-functions of one or several components if one deviates from the standard ways of operation (not everything can be tested). Here we list known cases of operation failures and demonstrate how to solve them. If you come accross problems which are not mentioned here, please, report them by using the Quicklook command:

    midas>    REPORT/CAFOS    follow instructions on screen

This will store your report to the REPORTS area and automatically send them by Email to the local staff and K. Meisenheimer.

8.1 Problems with the instrument control of CAFOS 2.2

  • When starting the CAFOS 2.2 control by ultra3> start_cafos one of the following ERROR messages may appear: "no connection to CAFOS" or "handshaking failed". Both messages indicate that there is a problem in the communication between ultra3 and the CAFOS electronics.
    You should:

      → (1) check whether the CAFOS electronics is switched ON and the power cable is connected (don't worry: the switch is not illuminated to avoid straylight).
      → (2) If (1) is o.k., the most likely reason for the failure is a problem in the cable connection between the pollux and the CAFOS electronics. Before alarming the staff, however, you should repeate the complete STARTUP procedure for CAFOS 2.2 (including switching OFF and ON the CAFOS electronics).
      → (3) If (2) does not help, you could try a reboot of the ultra3 but most likely there is a problem in the cable connection.

  • After some CAFOS commands (e.g. >Grism, >Aperture) the ERROR message "position not reached" may appear. Normally this is not a severe problem but only the result of rather strict tolerances in the instrument control.
    You should:

      → check whether the attempted operation is possible at all. (e.g. >GRISM will not work as long as the Etalon is in the beam.)
      → Select an adjacent position (e.g. the grism next to the requested one). If this is correctly positioned, go back to the one originally requested.

  • The metal vapor spectral lamps (1,3) cannot be switched ON within a few minutes after beeing switched OFF. If you try the message "Warning: lamp x cooling down, wait 3 minutes" will be displayed.
    You should:

      → Wait for up to 3 minutes and try again.

  • After setting REMOTE ON the CAFOS control program has to be re-activated for interactive control. This normaly is done by all Quicklook commands and sequences which remotely control CAFOS 2.2. However, in case of error exits this re-activation may not happen.
    You should:

      → Switch REMOTE OFF in CAFOS Control or
      → use midas> CAFOS LOCAL in the Quicklook.

  • Timeout for communication CAFOS -- Telescope:
    You should:

      → use RESET-tecs-dacs-tvg on the telescope control terminal (click with right mouse button on background).

8.2 Problems with CCD Acquisition program

  • Shortly after starting an exposure the error message:
    Telescope data not available
    might occur. You should:

      → use RESET-tecs-dacs-tvg on the telescope control terminal (click with right mouse button on background).

8.3 Problems with Quicklook:

  • If there appears a ERROR message in the Quicklook:
    You should:

      → first check whether you have used the correct syntax.

  • If after a Quicklook command without explicitly giving the image name (e.g. midas> FOCUS) the wrong image is displayed
    You should:

      → stop the process by CTRL-C,
      → check the background window whether the image of interest has already been received,
      → check ccdacq whether the image has in fact been sent, and
      → restart the command:
        midas> COMMAND image where you explicitly give the image name.

  • If any Quicklook procedure which controls the CAFOS 2.2 stops with the ERROR message:
    "CAFOS command without success"
    You should:

      → check whether CAFOS 2.2 was set to remote
      → if not, re-initialize the connection and start again:
        midas>    CAFOS LOCAL 0    reset connection,
        midas>    REMOTE ON    set CAFOS 2.2 in remote mode,
        midas>    COMMAND    start Quicklook command again.

  • If OFFSET/SLIT fails to position the marked object onto the slit,
    You should:

      → check whether the hole 0 coordinates are correctly defined in the SETUP. If you resently measured the position you only have to check the SETUP parameters by
        cafos:    >Setup → SETUP check X,Y coordinates.
      → if not, you should follow the procedure described in section 5.2 and correct the SETUP.

8.4 If nothing else works: Restart the system

SHUTDOWN: leave CAFOS 2.2 control with cafos: QUIT.
Switch OFF CAFOS electronics.
Leave CCD control and Quicklook.
STARTUP: proceed along the description in section 3.

A    Instrument Layout and Parameters

Table 2: Available CCD chips and their parameters
CCD/Dewar Tek#13 Lor#80 SITe#1d
Number of Columns 1024 2048 2048
Number of Rows 1024 2048 2048
Last column on frame ? ? 2168
e-/ADU (standard gain) 1.7 1.5 1.45
R.O.N. [cts] 8. 8. 8.8
Saturation [cts] >65000 ~35000 ~50000
   at stand. gain [e-] ~110000 ~53000 ~115000
Pixel size [µm] 24.0 15.0 24.0
--- Setup: 1-Nov-1997 ---
Plate scale [µm/arcsec] ~45.2 ~45.43 ~45.32
i.e. [arcsec/pixel] ~0.53 ~0.330 ~0.530
Field [arcmin] 9.0x9.0 11.3x11.3 16.0 diam.
Focus f0 ~1100 700 800
Field lens position +2.3 mm +1.9 mm +2.1 mm

NOTE: Under normal circumstances and using the standard gain the CCDs should be linear to better then 1% up to the saturation level given here !

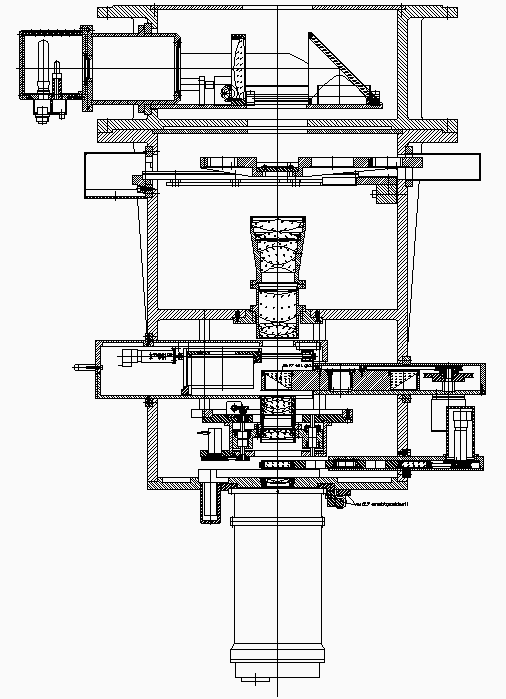

Figure 1: Layout of CAFOS 2.2

Its optical components are (from top to bottom): Calibration Unit, Aperture Unit, Collimator, Etalon (here: moved out), Grism Wheel, Camera Optics (adjustable focus), Filter Wheel, Shutter, Field Flattening Lens, Dewar containing the CCD detector.

A.1    Direct Imaging

Table 3: Limiting magnitudes for imaging.
Filter &lambda,Δ&lambda
[nm]
tshort (s) mlim tlong (s) mlim
free 600,600 10 23.0 100 24.3
B 455,100 100 23.7 3000 25.6
R 650,170 50 22.9 3000 25.2
I 850,150 50 ~22.1 3000 ~24.4


The values refer to a typical seeing of 1.4" (FWHM) and to the SITe-1d. The short exposure times give roughly the lower limit for background limited exposures.

Figure 2: Quantum Efficiency of SITe#1d


Figure 3: Distortion of plate scale (not available)

The distortion (fitted curve) can be described by:
&delta["] = 3.72 x 10-6 (r["])2 + 1.40 x 10-10 (r["])4, where r is the radial distance from the optical axis.


Figure 4: Shutter performance (not available)

A.2    Grism spectroscopy

Table 4: Grism Parameters.
Grism No. nm/arcsec nm/24µm σrms &lambda range [nm] λ2nd[nm]
B-400 7 1.830 0.976   0.05 320 . . . 800 650
R-400 4 1.809 0.965   0.05 475 . . . 1100 860
B-200 8 0.883 0.470   0.03 320 . . . 700 650
G-200 9 0.859 0.458   0.016 400 . . . 850 720
R-200 10 0.817 0.435   0.02 630 . . . 1100 1000
B-100 1 0.374 0.200   0.009 320 . . . 580 -
G-100 2 0.397 0.212   0.005 490 . . . 780 720
R-100 3 0.383 0.204   0.010 590 . . . 900 -


The useful range refers to the SITe-1d chip and may be affected by the second order at the red end (especially for the green grisms). σrms gives the RMS deviation of spectral calibration lines from a fit of 4th order. The wavelength &lambda2nd refers to the blue end of the second order contamination.

Table 5: Limiting magnitudes for spectroscopy. (not available)

A.2.1    Grisms B-400 & R-400

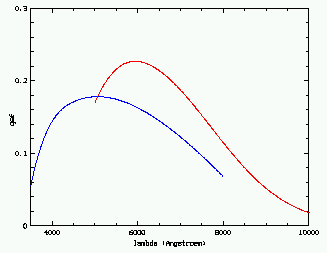

Figure 5: Efficiencies of Grisms: B-400, R-400.

The efficiency gives the number of detected photo-electrons per incoming photon and includes the transmissions of the telescope, CAFOS 2.2, as well as the Quantum Efficiency of a blue sensitive CCD. Current measurements indicate that the SITe-1d has an about 30% lower quantum efficiency.

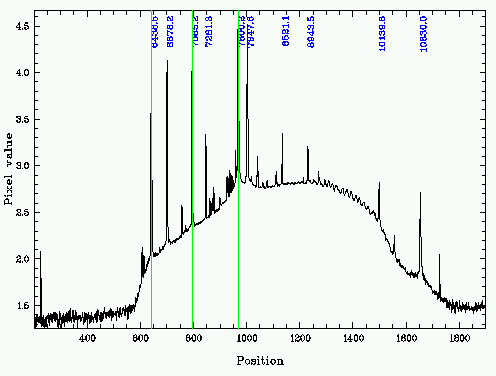

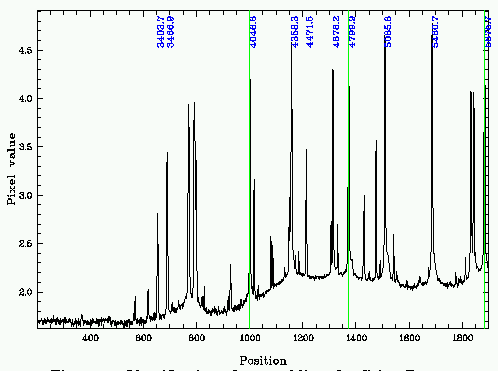

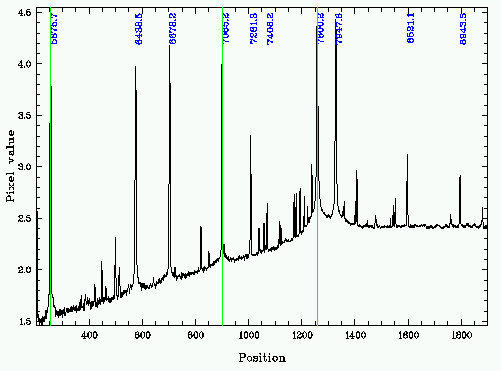

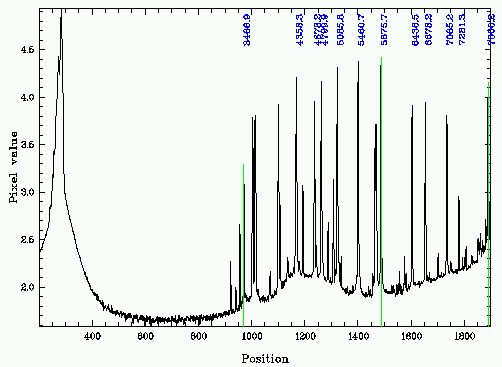

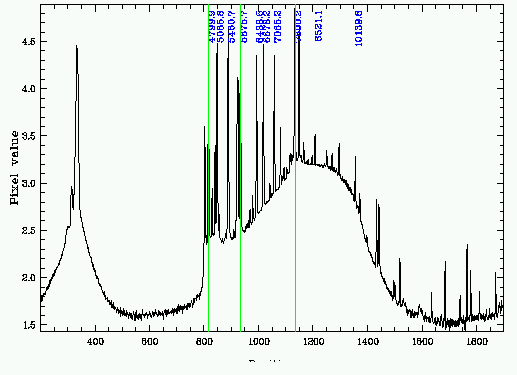

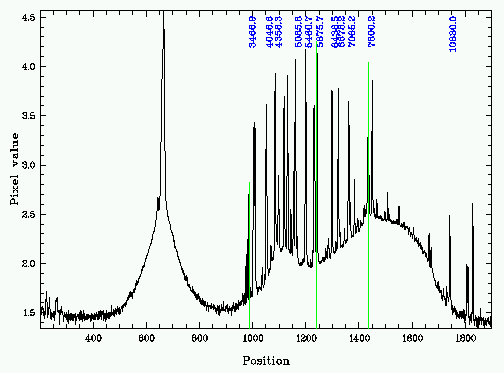

Figure 6: Identification of spectral lines for Grism B-400 (logarithmic scale).

In order to show also faint lines we use a logarithmic scale. The pixel scale refers to the SITe-1d chip.


Figure 7: Identification of spectral lines for Grism R-400 (logarithmic scale).

A.2.2    Grisms B-200, G-200 & R-200

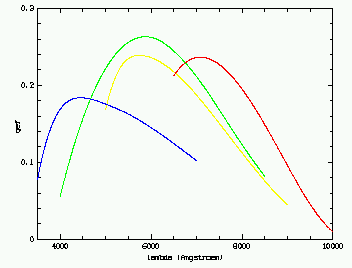

Figure 8: Efficiencies of Grisms: B-200, G-200, R-200.

The lower curve shown for grism G-200 refers to the overall QE when using a GG495 filter to suppress the second order longwards of about 750 nm.


Figure 9: Identification of spectral lines for Grism B-200 (logarithmic scale).

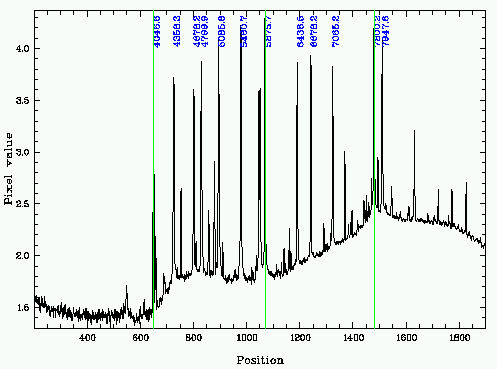

Figure10: Identification of spectral lines for Grism G-200 and R-200(logarithmic scale).

A.2.3    Grisms B-100, G-100 & R-100

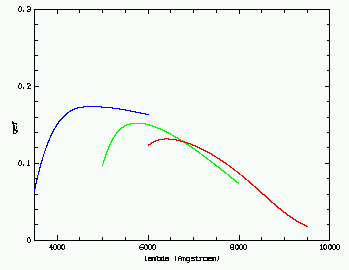

Figure 11: Efficiencies of Grisms: B-100, G-100, R-100.



Figure 12: Identification of spectral lines for Grism B-100 (logarithmic scale).

In order to show also faint lines we use a logarithmic scale. The pixel scale refers to the SITe-1d chip.

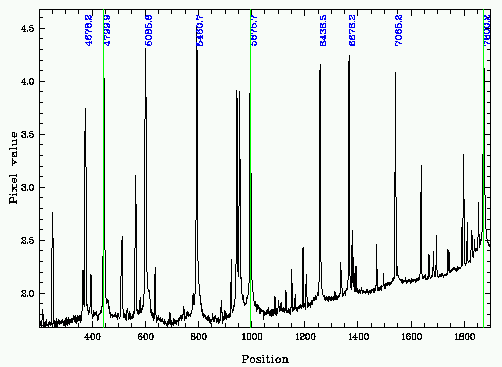

Figure13: Identification of spectral lines for Grism G-100 and R-100 (logarithmic scale).

B    Commands for Quicklook

B.1    General Information

The QUICKLOOK is based on the MIDAS system. The CCD camera writes FITS files onto .../images/myarea. They have to be transformed into the MIDAS BDF format.
The background receiver (which is started by receive, see STARTUP, step 5) converts the FITS file to the MIDAS BDF format. In order to prepare the frame for a quick and reliable analysis in the Quicklook system the following steps are taken:
  • Coordinates are set to absolute chip coordinates (i.e. the Quicklook coordinates are independant of the chosen sub-frames and the binning.
  • The electronic bias is subtracted
  • The counts in the ADC ("ADU") are converted to detected photo electrons. After this, the local noise value σ(x,y) should be σ = √(Ne + RON2).
  • The level and dynamical range of the image is analysed and the "cuts" (which control the dynamical range on the image display) are set appropriately.
The total time between CCD readout and the message received is 20 seconds (for a full frame = 2100 x 1750 pixel). About 6 seconds of this (= 27%) are needed for the above preparatory steps. For (small) aquisition frames the total transfer time is <10 seconds, including 3 seconds for the preparatory steps.
Many commands in the QUICKLOOK refer per default to the last image which was RECEIVED (look into the background window !).
The command midas> look permanently displays the last image.

On the following all available commands are described in alphabetical order.

GENERAL REMARK: Many commands ask "o.k. ?" or "... done >" You may just hit <cr> to continue.

B.2    Commands in alphabetical order.

CAFOS[/image]
Purpose: send command for remote control of CAFOS22
Syntax: CAFOS[/image] command [parameters]
Parameters:
   command any CAFOS command
   parameters the parameters of this command
Function: performs CAFOS command cafos> command parameter.
Example: CAFOS filter 3     moves in filter 3
CAFOS local     sets CAFOS back to interactive mode

CALIB/ETALON
Purpose: analyses calibration exposure for Etalon
Syntax: CALIB/ETAL [image]
Parameters:
   image image whith calibration exposure (produced by CSEQ/ETA), default is the last image recieved.
Function: FOLLOW the instructions on the SCREEN !
The program automatically analyses the image taken with CSEQ/ETA. The (central) intensity level of the slit images taken with differnt wavelength settings are determined and filled into a table which contains * and the intensity. The values are plotted and fitted by a Gaussian. The peak position z0 is the new wavelength calibration for the Rb λ7946 line.
Example: CALIB/ETA analyses last exposure.

CHECK/CCD
Purpose: checks whether image is background limited.
Syntax: CHECK/CCD [image]
Parameters:
   image CCD image, default is the last one received.
Function: compares frame level with read-out noise

CLEAR/CCD
Purpose: clears CCD Receiver
Syntax: CLEAR/CCD
Parameters: none
Function: the transmission signal from the CCD is removed.

CSEQ/ETALON
Purpose: Performs calibration exposure for FPI Etalon.
Syntax: CSEQ/ETA[LON] (no parameters)
Parameters: none
Function: Uses a focus exposure with shifting the charge on the detector to get a multiple image of the longslit for different wavelength of the Etalon around a calibration line. Follow the instructions on the screen. Use CALIB/ETALON to analyse the exposure.

EXPLAIN[/ima]
Purpose: Online help for the Quicklook system
Syntax: EXPLAIN command/qual
Parameters:
   command[/qual] Any Quicklook Command. The qualifier has only to be specified if several different qualifiers exist for this command. For instance OFFSET/SLIT and OFFSET/AXIS. If NO parameter given all available commands are listed.
Function: Displays help file
Example: EXPLAIN lists all Quicklook commands.
EXPLAIN look provides explanation for the command LOOK.

FOCUS[/ima]
Purpose: Analyses FOCUS exposure (produced by the FSEQ commands).
Syntax: FOCUS[/image] image
Parameters:
   image CCD image containing a focus exposure, default is the last one received.
Function: FOLLOW the INSTRUCTIONS on the screen !
Mark the images of the focus star (or internal hole) on the display. Focus will determine their widths and plot them as a function of the focus value. A parabolic fit determines the position of the minimum (= best focus) and the seeing value at the best focus. If everything is ok, the focus and seeing value are saved in the SEEING LOG.
Example: FOCUS    analyses last image which has been received by the Background Receiver.

FSEQ/CAFOS
Purpose: Performs focus exposure sequence for internal CAFOS2.2 focus.
Syntax: FSEQ/CAFOS [N-step] [N-shift]
Parameters:
   N-step Number of exposures.
   N-shift Number of pixels for detector shift (not used yet).
Function: FOLLOW the INSTRUCTIONS on the screen !
Example: FSEQ/CAFOS    performs default focus sequence for CAFOS. The CAFOS focus is changed and the images are shifted in between each exposure by shifting the charge on the chip.

FSEQ/TELES
Purpose: Performs focus exposure sequence for telescope focus.
Syntax: FSEQ/TELES [N-step] [N-shift]
Parameters:
   N-step Number of exposures.
   N-shift Number of pixels for shift in between exposures.
Function: FOLLOW the INSTRUCTIONS on the screen !
Example: FSEQ/TELES 9    performs focus sequence for the telescope containing 9 exposures.

INSPECT[/image
Purpose: Allows closer look to a received CCD image.
Syntax: INSPECT[/image] [image]
Parameters:
   image CCD image, default is the last one received.
Function: Displays image in standard format (i.e. full image, standard cuts). The user can choose new cuts, another Look-Up Table and zoom into sub areas of the displayed image.
Example: INSPECT    displays last image received.

INSPECT/PHOTO
Purpose: Plot and analyse PHOTOMETRY LOG produced by the command PHOTOMETRY.
Syntax: INSPECT/PHOTO nights ... (NOT IMPLEMENTED YET)
Parameters:
   nights numbers of nights to look back
   p2... to be decided
Function:
Example:

INSPECT/SEEING
Purpose: Plot and analyse the CAFOS SEEING LOG.
Syntax: INSPECT/SEEING [nights] [Xaxis] [Yaxis] [select]
Parameters:
   nights number of nights to look back. Default: the current night only.
   Xaxis parameter to be plotted along X. Default: Jul.Date.
   Yaxis parameter to be plotted along Y. Default: FWHM.
   select selection of the entries in the SEEING LOG. Syntax as in standard MIDAS, e.g. :XFWHM.EQ.:YFWHM
Function: Plots (selected) entries of the CAFOS2.2 SEEING LOG table. See command SEEING for a documentation of the most important table columns.
Example: INSP/SEEING    Plots the seeing FWHM of the current night (FWHM along X is shown in blue).
INSP/SEEING ? ? ? :XFWHM.EQ:YFWHM    same as above but only the values from FOCUS exposures (which have XFWHM=YFWHM) are plotted.
INSP/SEEING 5 T_tel F_tel    Plots telescope focus for the last 5 nights as function of the temperature of the telescope structure. A linear fit gives the slope of the focus change.

LOOK[/image]
Purpose: Permanent display of incoming CCD images.
Syntax: LOOK[/ima] (no parameters)
Parameters: none
Function: The LOOK process permanently checks whether a new image has arrived at the background receiver. The latest image is displayed. USE cntrl-C to stop the process !!

OFFSET/AXIS
Purpose: Position object of interest on the optical axis.
Syntax: OFFSET/AXIS [image]
Parameters:
   image Aquisition exposure, default is the last one received.
Function: Object which should be placed on the optical axis has to be marked with cursor. The telescope offsets are calculated and (on request) automatically carried out.
Example:

OFFSET/MASK
Purpose: NOT IMPLEMENTED YET !!!
Syntax:
Parameters:
   image Aquisition exposure, default is the last one received.
Function:
Example:

OFFSET/POLAR
Purpose: Bring object of interest into central stripe of polarization mask or the spectro-polarimetric slitlets
Syntax: OFFSET/POLAR [image]
Parameters:
   image Aquisition exposure, default is the last one received.
Function: Follow the INSTRUCTIONS on the screen !
Example: OFF/POLAR    displays last image and allows to mark an object which will then be placed in the middle of the central stripe of the polarimetric mask.

OFFSET/SLIT
Purpose: Bring object of interest onto the longslit.
Syntax: OFFSET/SLIT [image]
Parameters:
   image Aquisition exposure, default is the last one received.
Function: FOLLOW the INSTRUCTIONS on the screen! The ACQUISITION exposure (which has to preceed the command) will be displayed. Mark the object of interest with the cursor box. The necessary telescope offsets to place the object on the slit will be calculated and (on request) automatically performed. Repeating the aquisition exposure is possible if the accuracy of the positioning has to be checked.
Example: OFFSET/SLIT (no parameter)    displays last exposure received. The object of interest has to be marked with the cursor

PHOTOMETRY[/image]
Purpose: Measure AB magnitudes of program or standard stars.
Syntax: PHOTOMETRY[/image] [image]
Parameters:
   image Any direct CCD image, default is the last one received.
Function:
Example: PHOTO day50001    measures AB magnitudes on frame day50001.

SEEING[/image]
Purpose: Measures seeing FWHM on direct images
Syntax: SEEING[/ima] [image]
Parameters:
   image Any direct CCD image, default is the last one received.
Function: The user has to mark several stars ACCROSS the entire field on the display. Their widths are determined by Gaussian fits. A plot of the radial dependance of the seeing values allows to identify field effects in the PSF. The best seeing value ist stored in the SEEING LOG of Cafos2.2.
Example: SEEING day50003    measures the seeing PSF on the direct frame day50003.

SET/CCD
Purpose: Select parameters of non-standard CCD detector in the Quicklook system.
Syntax: SET/CCD chip
Parameters:
   chip One of the CCDs available for CAFOS. At the moment there are: SITe-1d and Lor-8o
Function: Sets some parameter keywords and loads in the appropriate dispersion table for wavelength calibration.
Example: SET/CCD SITe-1d    Change to parametres of SITe-1d.

SPECTRUM[/image]
Purpose: Reduce spectroscopic exposures
Syntax: SPECTRUM[/ima] [image] [type] [FF frame] [range] [confirm] [sky]
Parameters:
   image Any spectroscopic CCD image, default is the last one received.
   type image type = science, flat or arc, when type = ? the image type will be taken from the fits header.
   FF frame normalized Flat Field frame [default = noflat].
   range range along slit for searching the object spectrum, default = [<:>]
   confirm confirm identification of (brightest) spectrum, [default = confirm]
   sky Sky range. Default="SKY", takes 50 columns on each side of the object.
Function: The procedure automatically finds the brightest spectrum (but you can select another one interactively), subtracts the night sky and extracts the 1 dimensional spectrum (Horne algorithm). After that a standard wavelength calibration is applied.
Example: SPECTRUM    will extract 1-dim spectrum from last frame and perform standard calibration.

FFSEQ/DUSK
Purpose: Performs twilight Flat Field exposure sequence.
Syntax: FFSEQ/dusk Filt ID Filt NR [t1,t2] [Nmax] level
Parameters:
   Filt ID Filter Name (only used for header)
   Filt NR Filter Position in CAFOS filter wheel
   t1,t2 Minimum, maximum integration time (sec) [= 5,100]
   Nmax requested number of Exposures [= 4]
   level requested FF level (electrons) [= 30000]
Function: Runs in Background !
Example: FSEQ/DUSK B 1 10,100 3 25000    performs Flat Field exposure sequence for the B filter (at position 1) in the evening. The minimum integration time (to start with) is 10 sec and 3 exposures (none longer than 100 sec) are requested. The level of each exposure will be around 25000 electrons.

FFSEQ/DAWN
Purpose: Performs twilight Flat Field exposure sequence.
Syntax: FFSEQ/dusk Filt ID Filt NR [t1,t2] [Nmax] level
Parameters:
   Filt ID Filter Name (only used for header)
   Filt NR Filter Position in CAFOS filter wheel
   t1,t2 Minimum, maximum integration time (sec) [= 5,100]
   Nmax requested number of Exposures [= 4]
   level requested FF level (electrons) [= 30000]
Function: Runs in Background !
Example: FSEQ/DAWN B 1 10,100 3 50000    performs Flat Field exposure sequence in the morning. The maximun integration time (to start with) is 100 sec and 3 exposures (none shorter than 10 sec) are requested. The level of each exposure will be around 50000 electrons.

NEXT[/ima]
Purpose: Performs first and subsequent exposures of a sequence of imaging observations. Offsets telescope in between exposures.
Syntax: NEXT[/ima] mode:n t int [header] [Dec] [Flags]
Parameters:
   mode:n = start:n or continue. start:1 will start the first exposure of the sequence (at offset 0,0), start:5 will start the fifth exposure by moving to position 5 before integrating. continue starts next exposure of sequence.
Function: Runs in Background ! Does telescope offset and starts next exposure.
Example: NEXT start:1 600. NGC6618    will start the first 600 sec integration on NGC 6618.
NEXT cont 800.    starts the next 800 sec integration on the same object (after offsetting the telescope).



C    CAFOS 2.2 Control

C.1    GUI windows and their purpose

C.2    Commands to be used in Text window and Quicklook

CONFIG
Syntax: CO(NFIG) → get actual status of CAFOS 2.2

The string: S.1.223000.100.315.00.2000.12.0.345.01.0.0.0.0.0
contains all information about the instrument: (1) POL mounted, (2) absolute position of MASK, (3) SLIT width, (4) GRISM pos. angle, (5) FOCUS setting (+2000), (6) FILTER (7) POL/ETALON in/out, (8) Wollaston angle, (9) CALIBration mirror in/out, (10) lamps 1...4 on/off

Purpose: Check status of instrument.

CALIB
Syntax: CAL(IB) parameter : set calibration unit
parameter = 1(234) → switch on lamps 1 (, 2, 3, 4), and move mirror in
parameter = -1(234) → switch off lamps 1 (, 2, 3, 4)
parameter = 0 → switch off all lamps and move mirror out
parameter = * → look which grism is used. Switch on the appropriate lamps and move mirror in. Propose exposure time.

NOTE: Lamp 4 (=continuum) can be dimmed by turning the knob at the power supply box of the calibration unit.

See also: MIRROR, CTAB, GTAB

CTAB
Syntax: CTA(B) → edit CALIB.TAB to change IDs and filter names for lamp

ETALON
Syntax: ET(ALON) [parameter]
parameter = IN : move Etalon in
parameter = OUT : move Etalon out
parameter = CAL : define wavelength calibration of etalon
parameter = TEM : temp. input for calibration correction
parameter = RES : reset etalon controller (when problems)
parameter = XAD : parallelity adjustment in x-direction
parameter = YAD : parallelity adjustment in y-direction
parameter = PAR : type out etalon parameters


FOCUS
Syntax: FOC(US) +/-xxxx → set position of camera focus (in mue) min = -1990, max = 3990

Purpose: used to perform an internal focus series of the instrument (e.g. after mounting the CCD). Also necessary to determine the focus offset df for new filters of unknown thickness.

See also: FTAB, FZERO, HOLE

FREE
Syntax: FRE(E) → move all analysators out of the beam and set the appropriate focus.

Purpose: This command will make sure that the telescope beam passes unobscured through the instrument. In case you do not get the expected signal: Check telescope / TV guider. If o.k. there might be a severe problem with CAFOS 2.2. Check status by CONFIG !

FILTER
Syntax: FIL(TER) nn → move filter wheel to position nn and set camera to appropriate focus:

focus = FZERO + df ; where FZERO = focus (no filter) df = focus offset of filter nn
FILTER F[ree] → move to free position
FILTER ? → show filter list (= filter.tab)

See also: FTAB, FZERO

FTAB
Syntax: FTA(B) → edit FILTER.TAB to assign and set parameters for new filters.
After a focus exposure you have to set the focus offset df of the filter to df = best.focus - FZERO (= focus: no filter)

WARNING: df has to be given in mm (NOT micron !!)

See also: FOCUS, FZERO, FILTER

FZERO
Syntax: FZE(RO) +/-xxxx → define value of NO-FILTER focus (in mue)

Purpose: If the CCD is remounted the focus of the instrument may have changed. You should refocus CAFOS 2.2 without filter (= FILT FREE) and define the newly determined value.

See also: FOCUS

GRISM
Syntax: GRI(SM) nn → move grism to position nn
GRI(SM) free → move grism wheel into free position.
GRISM ? shows list of available grisms (grism.tab)

Note: If you get the warning > Position not reached < do not panik !
Just repeat the command; The tolarances of the grism wheel positions are extremely small in order to get perfectly aligned spectra.

See also: GTAB, GPOS, CALIB

GPOS
Syntax: GPO(S) xxx.xx → move grism wheel to position xxx.xx (degree)
ONLY for MAINTANANCE ! Observers should'nt do this !!!

GTAB
Syntax: GTA(B) → edit GRISM.TAB to assign grism number to position angles, and define the relevant parameters of each grism.
ONLY used for MAINTANCE !! Observers should NOT do this !

GZERO
Syntax: GZE(RO) +/-xxx.xx → define offset for position angle of all grisms.

Purpose: in case the grism wheel or the aperture unit have been removed it may be necessary to align the spectra with the columns (rows). Set GPOS 240.00 and expose the HOLE through GRISM 9 ! Measure the angle of the spectrum on the chip. This is your GZERO value (check +/- by rotating to GPOS 240.00.

HELP
HE(LP) [?] without parameter → get command list
HE(LP) cmd → info about every cmd

HOLE
Syntax: HOL(E) +/-xxx.xx → move hole (50 micron diameter) in aperture unit to position +/-xxx.xx [mm] with respect to its central position.

Purpose: to perform a focus series to measure the internal focus of CAFOS 2.2 or the focus offset of a new filter you should use the HOLE. Moving it gives you the opportunity to expose all focus exposures on ONE FRAME.

See also: FOCUS, FZERO, MASK

INIT
Syntax: INI(T) → move CAFOS to a defined position, initialize encoder
SOFT RESET: try if either CONFIG or FREE give unexpected results

NOTE: If you get ERROR messages like > Handshaking failed < etc. you better switch off the CAFOS 2.2 electronic box (HARD RESTART) and restart the program by:
cafos> STOP
ccdham> /disk-a/cafos/source/cafos

LAMBDA
Syntax: LA(MBDA) [wlen [ord]] → set etalon to observing wavelength
wlen = wavelength in nm
ord = interference order
ONLY allowed when ETALON IN

MASK
Syntax: MAS(K) [1, 2, F(REE), S(LIT)] → move aperture mask to desired position
USE MASK 1 to access MASK.2 for change and vice versa.

MPOS
Syntax: MPO(S) xxx.xxx → move aperure unit with masks to desired position xxx.xxx (in mm)
Mostly used for MAINTENANCE but could also help to center Multi-Object Masks.

MTAB
Syntax: MTA(B) → edit MASK.TAB to assign positions (mm) to each MASK in the aperture unit.

See also: MPOS, MASK

MIRROR
Synatx: MIR(ROR) in/out -? moves mirror in/out of the calibration unit.
WARNING: MIRROR IN will block the light from the telescope without switching the lamps on!
MIRROR OUT will leave the lamps ON !

See also: CALIB

POLA
Syntax: PO(LA) [F(REE), I(N), ppp.pp] → move polarisator in/out
ppp.pp = move in and rotate lambda/2 plate to desired position angle.
Wollaston splits beam along N-S

SETUP
Syntax: SET(UP) → change parameters of the instrument setup in table CAFOS.TAB
THIS IS ESSENTIAL for getting CORRECT FITS HEADERS
IMPORTANT: you have to change Position Angle of Cassegrain Adaptor when rotating the instrument.

SLIT
Syntax: SLI(T) xxx → move aperture unit to longslit and change slit width to xxx (in mue)
>> use MASK S(LIT) instead if you do not want to re-adjust the slit width.

See also: MASK

TFOC
Syntax: TFOC ff.fff → move telescope focus to ff.fff [mm]

TOFF
Syntax: TOFF aaaa.a,dddd.d -? move telescope by aaaa.a [arcsec/cos DEC] in RA and dddd.d [arcsec] in DEC.

REMOTE
Syntax: REMOTE (no parameter) → set CAFOS in REMOTE control
NOTE: CAFOS prompt disappears, but no further message is returned
Set back to LOCAL by
midas> CAFOS LOCAL in QUICKLOOK

D    Overview over CCD control
