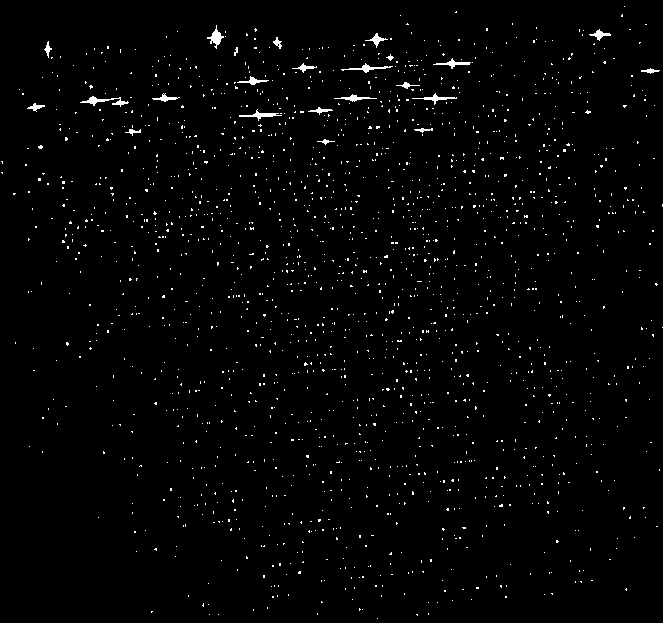

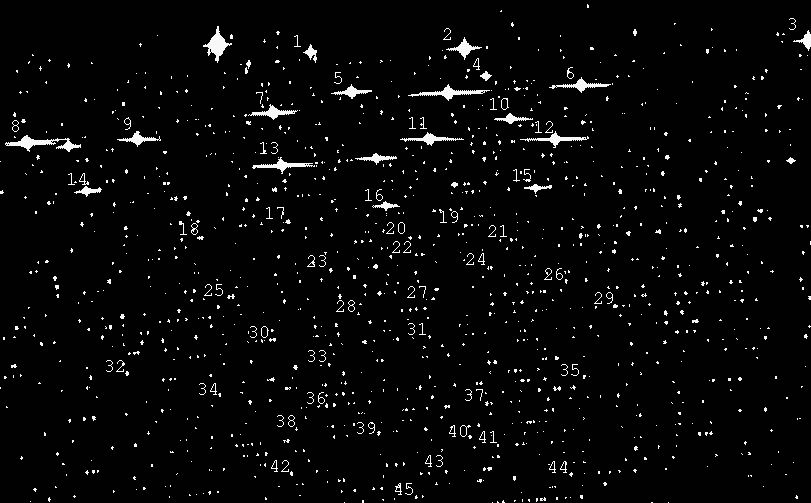

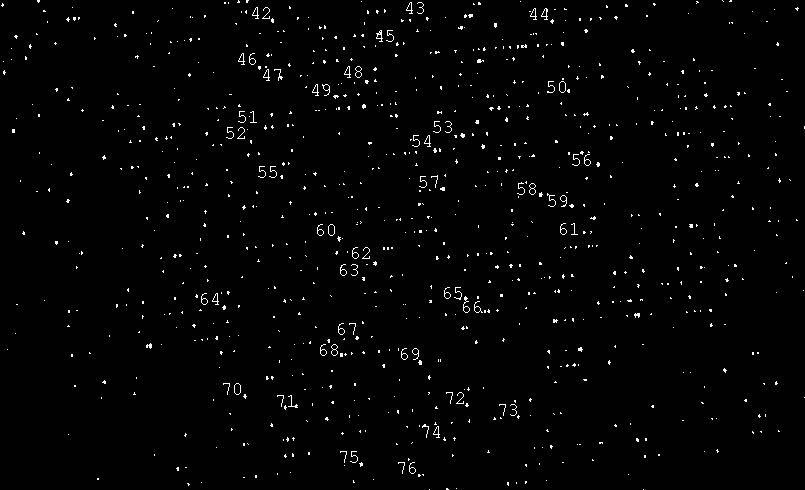

Th-Ar   lamp

#	(Å)	#	(Å)	#	(Å)	#	(Å)

1	9353	21	6577	41	5296	61	4475
2	9224	22	6494	42	5231	62	4426
3	9124	23	6412	43	5196	63	4391
4	8668	24	6343	44	5159	64	4348
5	8521	25	6261	45	5101	65	4331
6	8425	26	6235	46	5045	66	4300
7	8265	27	6152	47	5002	67	4259
8	8115	28	6073	48	4965	68	4227
9	8014	29	6033	49	4920	69	4200
10	7948	30	5939	50	4895	70	4159
11	7723	31	5891	51	4831	71	4132
12	7635	32	5804	52	4789	72	4113
13	7504	33	5764	53	4764	73	4087
14	7384	34	5640	54	4723	74	4053
15	7067	35	5615	55	4674	75	4019
16	6965	36	5539	56	4658	76	3995
17	6871	37	5499	57	4610	77	3967
18	6780	38	5431	58	4579	78	3934
19	6727	39	5387	59	4545	79	3916
20	6643	40	5344	60	4493	80	3895

Echelle orders, initial and final wavelength (A), dispersion (mA/2pix) and 2pix-resolution for a 24 microns pixel CCD.

Full wavelength range it is covered with these postscript files:

From 3850 to 4720 angs.  Orders 121-146
From 4680 to 6260 angs.  Orders 91-120
From 6225 to 9600 angs.  Orders 59-90
