Omega Prime - Observer's Manual
MANUAL REVISION 1.1
D. Thompson, P. Bizenberger

Omega-Prime
Homepage
MPIA
Homepage

Observer's Manual - Table of Contents


Introduction

This manual is currently under construction, and likely to change frequently. The authors welcome and suggestions for improvement, additional information which should be included here, and otherwise constructive criticism.

In this manual, we are assuming that the reader is already familiar with infrared observing in general, as well as the reduction of data into a final, useable form. If not, the reader is directed to the MAGIC manual, where much of this information can be found. We attempt here to provide enough information so the user can prepare for and execute a successful observing program with Omega-Prime.


S/N Considerations

Technical Characteristics
Array
Array Type Rockwell 1024 x 1024 pixel HAWAII array:
HgCdTe detector + Si MOSFET non-destructive readout
Pixel scale 0.3961±0.0004 arcsec/pixel
Read Noise ~25 electrons
Dark Current less than 2 electrons/second/pixel
Field of View 405.6 arcsec square (6.76 arcmin square)
Wavelenth range 1.0 µm - 2.5 µm
Telescope Calar Alto 3.5m (prime focus)

Sensitivity:
For point sources to the 5 sigma level (i.e. the brightest pixel in the centre of the star is at 5 times the background noise), with two minutes integration time (not including any overheads for detector read out etc.), and with a seeing of 1 arcsec FWHM.


K' = 17.5 mag H = 18.1 mag J = 19.2 mag

For observers intending to do deep imaging in the K' filter, calibrations from the CADIS data indicate that with 42 minutes exposure time and 1.3 arcsec seeing, point sources of 19.7 magnitude are detected at 5 sigma, defined as 5 times the single pixel rms noise, times the square root of the number of pixels within an aperture with a diameter twice the seeing FWHM. This seems to be scaling nicely with root-time for different exposure times.

Readout Modes

Omega Prime supports a number of detector readout modes suitable for various observing situations. The available modes depend on the read out electronics which is in use. There are two electronics available for OPrime. The new electronics offer, in addition to the common modes, a new read out mode (called "fullMPIA" mode) for high background conditions i.e. short integration times. The new electronics is tested and is available at a shared risk basis for this semester. It will replace the old electronics afterwards.
The various modes are described in detail below, and can be invoked with the ctype instruction from the Camera control GUI panel, from the command line interface, or from macro files.

Single Correlated Read (ctype scr) or (ctype rr)
This is the simplest readout scheme. The pixels are reset at the beginning of an exposure, and read out once at the end of the integration. This does not remove the variable pedestal level (kT noise) and any initial offsets which can vary from pixel to pixel. We do not recommend using this mode for observation. Its main usefulness is in checking the signal level for saturation.

Double Correlated Read (ctype dcr) or (ctype orrr) or (ctype rrr-mpia)
This is the most commonly used mode for general observing. The array is read immediately after the initial reset and again just before the final reset at the end of the integration. This eliminates the kTC noise and other offsets, but increases the read noise by root-2 because the noise from two readouts goes into a single image. Two similar variations of this readout mode are available, dcr and orrr. The only difference between the two is that the former makes use of a hardware coadder, while the latter mode does not. We recommend using the dcr mode, as the data rates are lower and there is less load on the computer than with the orrr mode. Virtually all imaging with Omega-Prime to date has been in the dcr mode.
The new electronics offer a modified double correlated read (ctype rrr-mpia) with a so called fast reset. This icrease the efficiency of this read mode.

Multiple End Point Sampling (ctype mcr N) or (ctype omult N)
This variant of Double-Correlated Sampling is also known as Fowler sampling (see Fowler and Gatley 1991, Proc. SPIE, 1541, 15). The array is read multiple times after the initial reset and before the final reset (the value N tells Omega-Prime how many reads to perform). This scheme can reduce the read noise substantially, theoretically by a factor root-N. As with the double correlated read mode, there are two variations of this readout mode available, mcr (uses coadder) and omult (does not use coadder). Due to the long read time for Omega-Prime, 0.8 seconds for each read, this is only practical in very low background situations such as narrowband imaging, where the total exposure time can be relatively long. This readout mode has not been extensively tested in Omega-Prime!

Sample Up the Ramp (ctype orm N)
This readout scheme also reduces the effective read noise, since the pixel voltage is sampled N times at equal intervals during the integration. The total signal comes from a linear fit through the measurements. As with multiple end point sampling, this is only useful in low background conditions. This mode has not been extensively tested in Omega-Prime! Warning: Be careful not to saturate the total signal in this mode!

Full MPIA Mode (ctype rrr-fmpia)

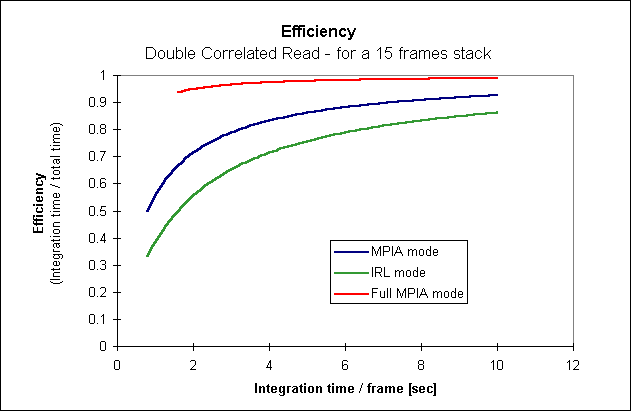

This mode is implemented only in the new electronics. It is supposed to give a higher observing efficiency compared to the existing modes. See the following graph for the calculated efficiency  of a stack of 15 images. The MPIA mode is the common double correlated read mode (Reset Read Read) which is usually used with Omega Cass or Omega Prime (and new electronics). The IRL mode is the double correlated read mode used with MAGIC and Omega Prime. For short integration times is the efficiency of the Full MPIA mode significant higher to the other modes. Since the overhead of one mode is constant for a read out stack, the ratio of overhead to integration time is the worst for minimum integration time.

   The noise is the same as for the Double Correlated Read. Minimum integration time is 1.68 seconds.

    The common double correlated read out modes are 'frame orientated' i.e. you reset the hole array, read the hole array, read again the hole array and subtract the two frames. Assuming a very fast reset, this takes twice the time to read the
array, to achieve an image with minimum integration time. In this case, a single pixel integrates light only as long as it takes to read the array once. The resulting efficiency is for minimum integration time 50%, changing to better values for
longer integration times.

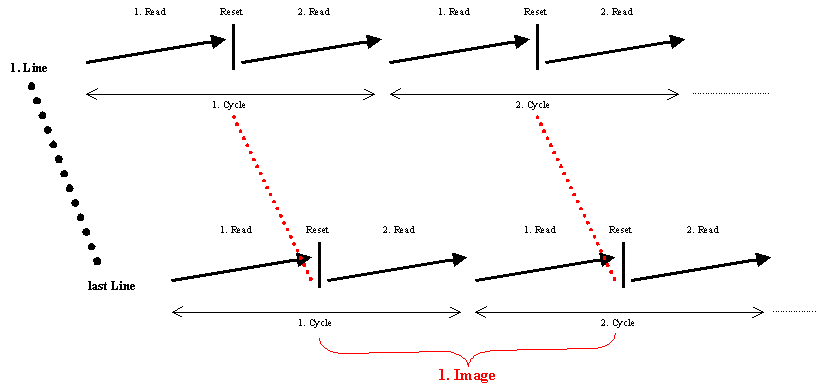

    The new Full MPIA mode is 'line orientated'. You read one line, reset the same line and read it again. Do this for the hole array. Next cycle is the same. You read one line, reset the same line and read it again. To archive a double correlated
image, you subtract the second read of the first cycle from the first read of the second cycle. Repeat this for the hole array. The efficiency is in this case almost 100%, it is not exact 100% since the reset is not infinite short and the first read of the first cycle (as well as the second read of the last cycle) is lost and counts as an overhead. This overhead becomes negligible when taking many frames in a row. The graph is for a stack of 15 images (Repeat 15). For a single image, this mode shows no advantage to the MPIA mode, it rather has the disadvantage of the longer minimum integration time.

        The minimum integration time increases from 0.84 to 1.68 seconds because still two reads are necessary for a double correlated read. But the integration of photons is done during the hole read process.

Subarrays

    This readout scheme reads a square box of variable size.  This mode is well suited to occultations. The actual readout technique is Reset Read Read. The size of the subframe must be an even number. In addition the subarray has to be located entirely in one quadrant of the detector.

    This mode is not a typical observing mode for OPrime. In case you want to use this mode please see the OCass manual for more information about subarray read out.


Bad Pixels
Bad pixels can either be hot (very high dark current), or cold (usually a failed electrical connection through the indium bump-bonds), though sometimes marginally bad pixels can show an intermittent behaviour. A few new bad pixels show up each time the NICMOS3 arrays used in the MAGIC camera are warmed and then cooled again. This problem is likely to be more pronounced with the larger 1024² HAWAII arrays, as the differential thermal expansion between the sapphire substrate of the HgCdTe and the silicon multiplexer can act over a larger distance. For this reason, Omega-Prime will only be warmed when the dewar vacuum requires repumping (probably twice a year, between the observing semesters).

When observing with Omega-Prime, be sure to take the necessary data to allow construction of your own bad pixel map! Generally, your domeflat exposures will serve to identify cold pixels, while an exposure using the "blank" filter (a 77K aluminum disk) will show hot pixels.

Linearity
A linearization matrix is not yet available.

Camera
Dewar Window
The dewar window is made of calcium fluoride, 15 cm in diameter, and is anti-reflection coated. The central part of the window is normally colder than the outer rim, due to radiative cooling into the 77K dewar and relatively slow thermal conduction through contact with the dewar around the edge. As a result, the window is prone to fogging over in high-humidity. Evidence suggests that you should start to worry if the humidity within the dome rises above the 90% level. If you suspect that the dewar window has fogged over, please ask the night assistant to check.

A system has been installed which diverts the cold, dry nitrogen boil-off from one of the internal liquid nitrogen tanks to a ring of jets around the edge of the dewar window. This seems to have helped alleviate some of the problem, though we do not yet have enough experience with the camera to say for certain that the fogging problem has been completely solved. Therefore, we suggest you continue to exercise due caution under high-humidity conditions.

Available Filters
Most of the usual infrared filters can be found in Omega-Prime, including broadband J, H, K, K', and Ks, as well as narrowband filters for Fe II, molecular hydrogen, Brackett gamma, and CO. A complete and current listing of the available filters can be found on the Omega-Prime technical characteristics page.


Using Omega-Prime
Before You Begin
Delta-alpha, Delta-dec offsets! Make sure the telescope offset system is set to delta-alpha, delta-dec! The offsets sent by Omega-prime are in arcseconds, which the telescope mis-interprets if set in du-dv mode (used for Mosca and the double spectrograph).

Startup Procedure
The observatory personnel will provide the observers with the username and password for the Omega-Prime computer. If you are intending on observing, the telescope also needs to be brought to full operation before initializing the Omega-Prime GUI. The Calar Alto staff will introduce you to the telescope, the computer system and the software.

GUI Description
The Graphical User Interface (GUI) consists of several panels, each of which has a different function. The GUI has been written to control a number of different cameras (Omega-Prime, Omega-Cass, MAX, MAGIC), so there are some functions you will see on the GUI which do not work with Omega-Prime. All descriptions given below apply specifically to Omega-Prime. Click on the panel name below for a complete description of that panel's functions.

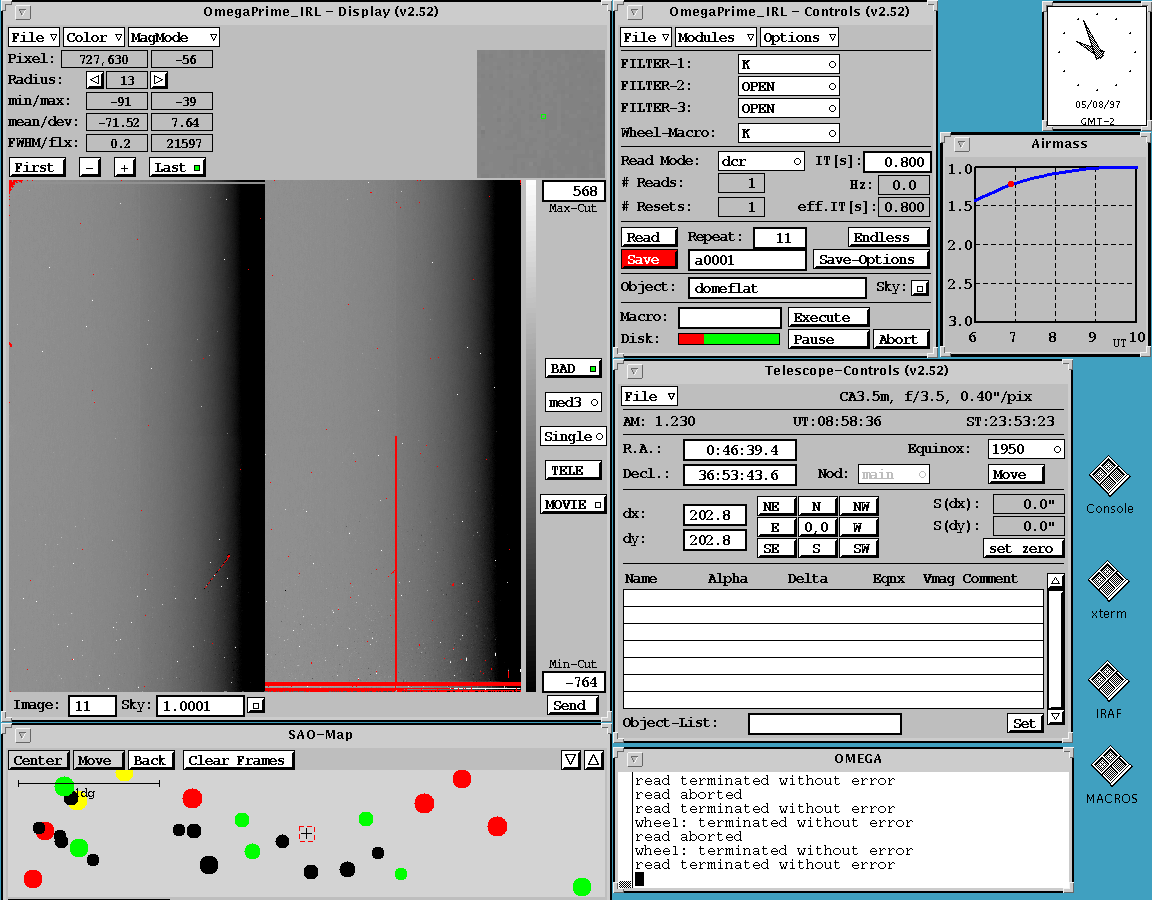

Overview How the full screen might look.
Initialize Initialization window.
Camera
Control
Basic control of the camera and exposure time.
Telescope
Control
Basic control of the telescope:
positioning and offsetting.
Sky Map SAO catalog + imaging history.
Airmass Graphical airmass display.
Command Manual input of commands.
Display Display of images as they are obtained.


Calibration
UKIRT Faint IR Standard Stars
Because all of the brighter infrared standard stars (e.g. standards from Elias et al. 1982, AJ, 87, 1029) saturate in the relatively long minimum exposure time with Omega-Prime (0.8 seconds), it is necessary to use the UKIRT faint infrared standard stars (Casali 1992, JCMT UKIRT Newsletter, 4, 33) to calibrate your data. Even the brighter stars from this list saturate, so one should pick which stars to use carefully! It is generally a good idea to stick with stars fainter than about 10th magnitude in the K band.

An object file ( faintstd.objects ) containting the complete, current list of UKIRT faint standards in the format required by Omega-Prime is available to download and edit to suit your needs. In addition, K-band finding charts are available by clicking on the name of the standard star in the table below.

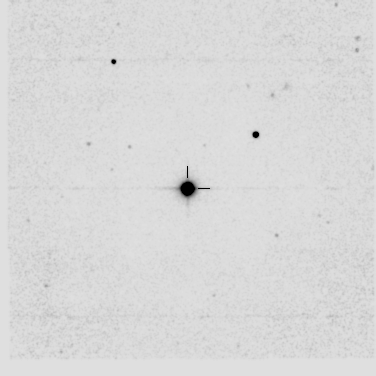

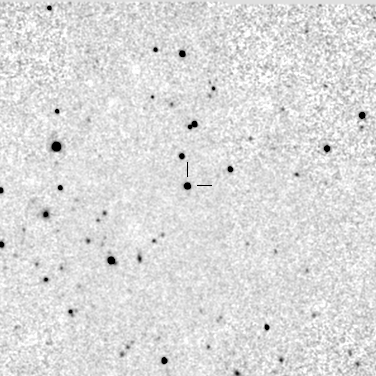

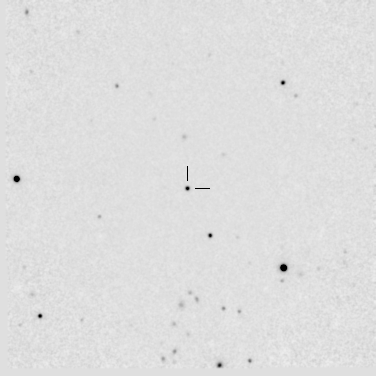

A somewhat large [4.5 MB] gzipped postscript version of the table and fainding charts is also available for those who prefer a hardcopy ( faintstd.ps.gz ). This file will be updated as new images become available. The current version is dated 19 February 1997.

UKIRT Faint Infrared Standard Stars

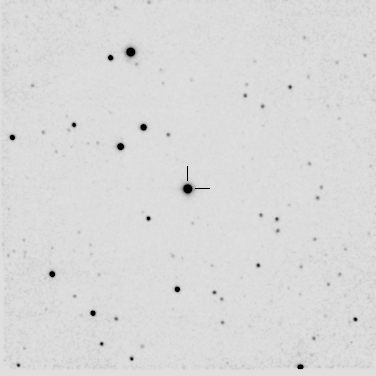

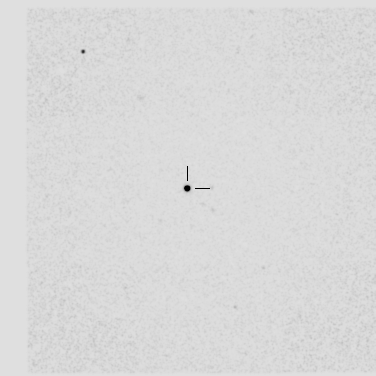

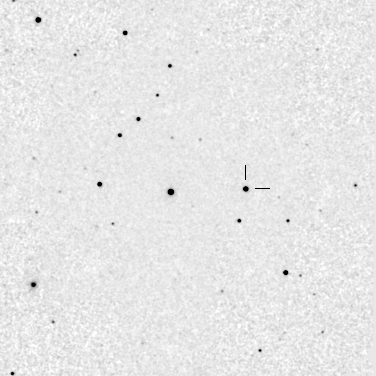

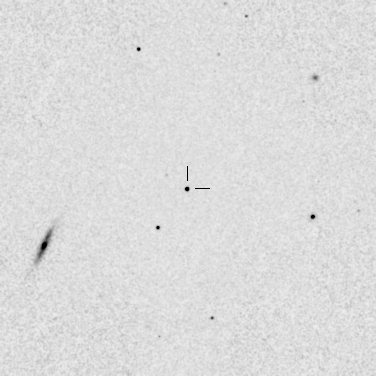

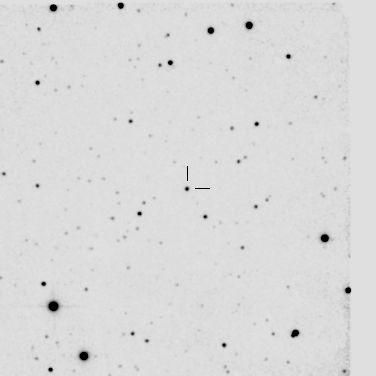

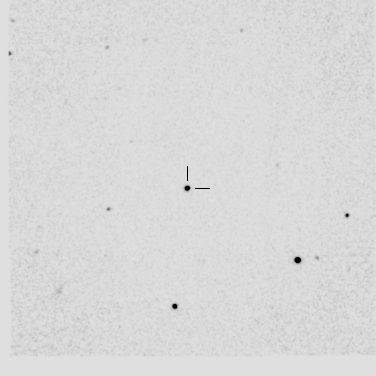

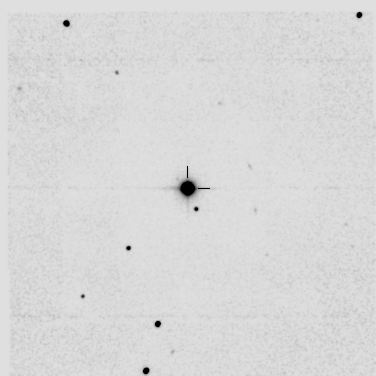

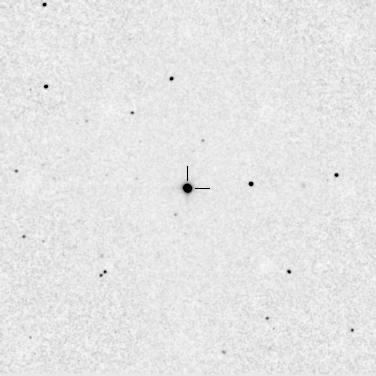

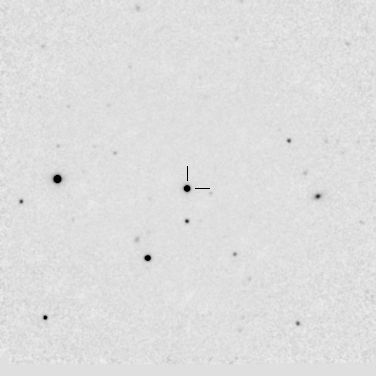

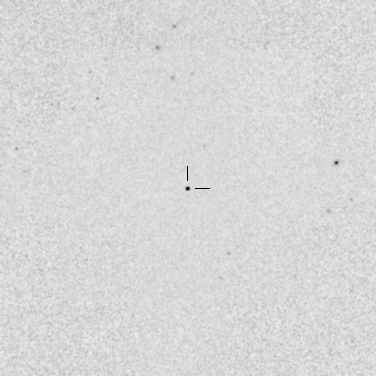

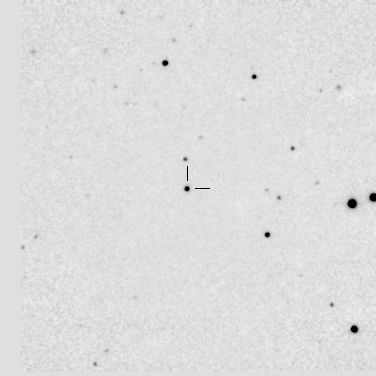

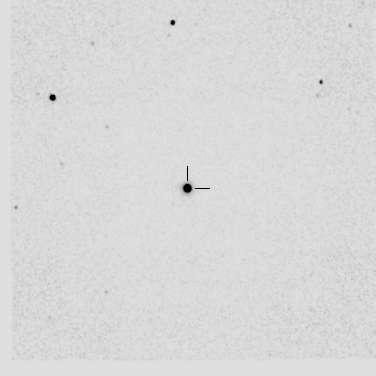

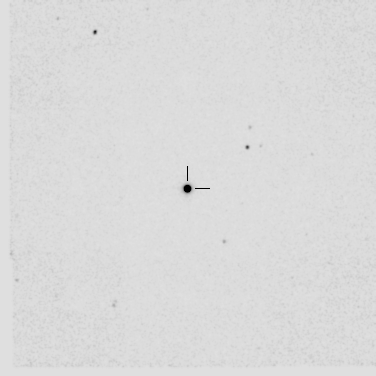

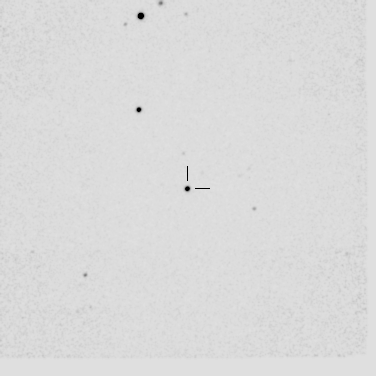

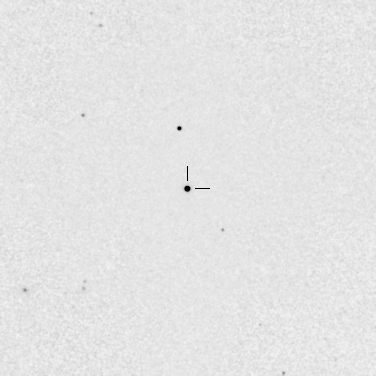

Name Other RA 1950 Dec 1950 K (H-K) (J-K)

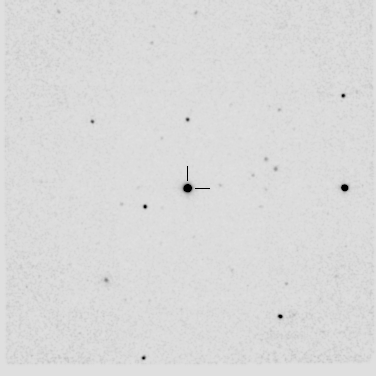

FS   1 G158-100 00 31 22.7 -12 24 29  12.967
(0.021)
0.081
(0.012)
0.462
(0.011)
FS   2 SA92-342  00 52 36.0 +00 26 58  10.466
(0.003)
0.038
(0.003)
0.247
(0.003)
FS   3 Feige 1  01 01 46.6 +03 57 34  12.822
(0.007)
-0.097
(0.007)
-0.222
(0.011)
FS   4 SA93-317  01 52 03.7 +00 28 20  10.264
(0.005)
0.040
(0.007)
0.292
(0.003)
FS   5 Feige 16  01 52 04.7 -07 00 47 12.342
(0.006)
-0.002
(0.004)
-0.007
(0.004)
FS   6 Feige 22 02 27 39.2 +05 02 34  13.374
(0.015)
-0.069
(0.012)
-0.135
(0.014)
FS   7 SA94-242 02 54 47.2 +00 06 39  10.940
(0.005)
0.037
(0.010)
0.165
(0.012)
FS   8 SA94-251  02 55 12.9 +00 04 04  8.313
(0.006)
0.129
(0.004)
0.766
(0.002)
FS   9 SA94-702  02 55 38.8 +00 58 54  8.266
(0.006)
0.016
(0.019)
0.884
(0.003)
FS 10 GD 50 03 46 17.4 -01 07 38  14.919
(0.072)
0.016
(0.019)
0.884
(0.003)
FS 11 SA96-83  04 50 25.4 -00 19 34  11.278
(0.018)
0.016
(0.019)
0.076
(0.025)
FS 12 GD 71 05 49 34.8 +15 52 37  13.898
(0.003)
-0.091
(0.018)
-0.217
(0.014)
FS 13 SA97-249  05 54 33.8 +00 00 53  10.135
(0.003)
0.047
(0.005)
0.382
(0.002)
FS 14 Rubin 149  07 21 41.2 -00 27 10  14.261
(0.012)
-0.079
(0.020)
-0.153
(0.005)

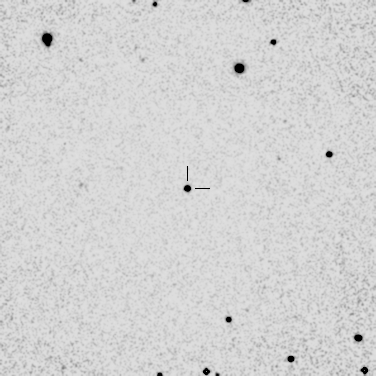

FS 15 M67-I-48  08 48 21.9 +11 55 02  12.360
(0.021)
0.060
(0.007)
0.418
(0.008)

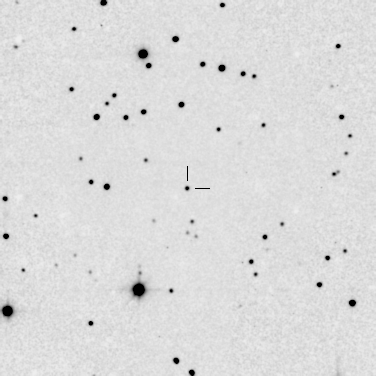

FS 16 M67-IV-8  08 48 31.0 +12 00 36  12.631
(0.008)
0.038
(0.005)
0.340
(0.006)

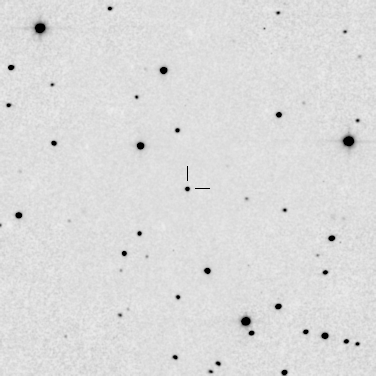

FS 17 M67-IV-27  08 48 35.4 +12 03 26  12.270
(0.007)
0.073
(0.003)
0.411
(0.007)
FS 18 SA100-280  08 51 02.1 -00 25 14  10.522
(0.008)
0.031
(0.003)
0.292
(0.003)
FS 19 G162-66 10 31 14.5 -11 26 08  13.796
(0.025)
-0.142
(0.047)
-0.231
(0.021)
FS 20 G163-50 11 05 27.6 -04 53 04  13.473
(0.017)
-0.069
(0.012)
-0.120
(0.015)

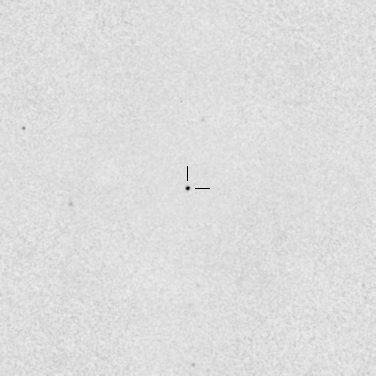

FS 21 GD 140 11 34 27.6 +30 04 35  13.132
(0.004)
-0.101
(0.037)
-0.184
(0.033)
FS 33 GD 153 12 54 35.1 +22 18 08  14.240
(0.016)
-0.078
(0.024)
-0.223
(0.010)
FS 23 M3-193  13 39 25.7 +28 44 59  12.374
(0.000)
0.072
(0.018)
0.623
(0.004)
FS 24 SA106-1024
VARIABLE?
14 37 33.3 +00 14 36  10.753
(0.008)
0.019
(0.004)
0.151
(0.006)
FS 25 SA107-1006  15 35 59.9 +00 24 03  9.756
(0.017)
0.070
(0.005)
0.475
(0.003)
FS 26 SA108-475  16 34 26.3 -00 28 39  7.972
(0.009)
0.155
(0.006)
0.858
(0.004)

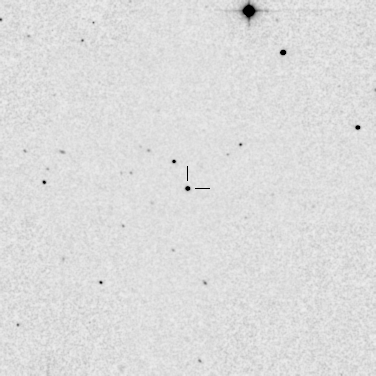

FS 27 M13-A14  16 38 54.2 +36 26 56  13.123
(0.018)
0.058
(0.014)
0.371
(0.013)
FS 28 SA109-71  17 41 32.5 -00 23 44  10.597
(0.016)
0.047
(0.005)
0.148
(0.010)

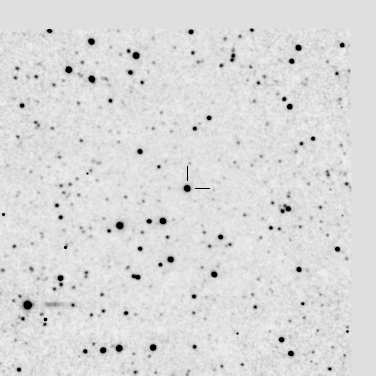

FS 35 G21-15 18 24 44.5 +04 01 17  11.757
(0.017)
0.089
(0.005)
0.474
(0.008)

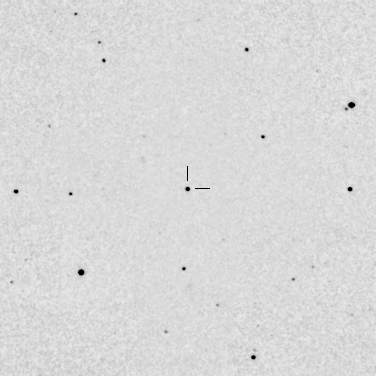

FS 34 EG 141 20 39 41.9 -20 15 21  12.989
(0.011)
-0.070
(0.009)
-0.170
(0.008)
FS 29 G93-48 21 49 53.0 +02 09 16  13.346
(0.024)
-0.075
(0.012)
-0.171
(0.011)
FS 30 SA114-750  22 39 11.3 +00 56 55  12.015
(0.020)
-0.036
(0.005)
-0.092
(0.013)
FS 31 GD 246 23 09 50.4 +10 30 46  14.039
(0.010)
-0.120
(0.017)
-0.241
(0.020)
FS 32 Feige 108 23 13 38.2 -02 06 58  13.664
(0.012)
-0.088
(0.015)
-0.205
(0.011)

White Dwarf Star:     Alternate names of stars given in this color in the table above indicate that the star is a white dwarf. While none of the stars have actual calibrations in the narrowband filters, reasonable magnitudes can be interpolated from the filter characteristics and the broadband magnitudes. White dwarf stars will not work with this method for the Brackett gamma filter, as they have strong absorption lines at this wavelength.

Zero Points       J
(Jy)
      H
(Jy)
      K
(Jy)
Flux for a 0.0 mag star  654  1049  1614

Note: The values quoted above for the flux from a zero magnitude star are from Bessel & Brett (1988 PASP, 100, 1134), scaled to zero magnitude. Bessel & Brett quote fluxes for a 0.03 magnitude star.

Dome Flats
Flats are normally obtained against the inside of the dome. It is pretty much impossible to take dome flats for the standard K filter, because the dome itself saturates the array in the minimum exposure time. For the K' filter, one often has to work hard to get the 500W quartz lamp faint enough so that it also doesn't saturate the array in the minimum exposure time! What has worked for the CADIS project is to point the lamp towards the aluminum door into the freight elevator at the north end of the telescope. Adjust the distance until you get a satisfactory "lights on" domeflat (usually less than 10 cm). The other filters are less troublesome, and the narrowband filters can usually use the 500W lamp pointed directly at the dome.

Shutdown
To shut the GUI down at the end of the night, simple select quit system in the file menu on the camera control window. When the GUI has shut down, type "cleanup" in the command window.

Taping to DAT
As of this writing, the most data generated with Omega-Prime during a single night's observing is about 4 GB, though it should be possible, with different goals in the observing program, to generate much more than this. Taping to the DAT drives has been clocked at 1.25 hours to tape 1 GB of fits images using the tar command, so if multiple copies of the raw data are needed, this can easily take the entire daylight period. The Omega computer will therefore normally be configured with two DAT drives. If it is not already done by the start of your run, and especially if you plan on generating large amounts of data (for example, saving individual images), please ask someone to attach a second DAT drive. It is possible to tape two sets of data in parallel.


Troubleshooting

Observing with Macros
It is strongly recommended that the majority of your observing be done with the use of macros, which can be prepared in advance of the observing session. Macros are ASCII files which contain a list of commands, one per line, which are executed sequentially by the GUI's command interpreter. A basic macro "block" might look something like this:

  read
  sync
  tele r 200.0 0.0
  save -f 2 -i
  sync tele

Where the read command will read out the array using the current integration time and number of repeats as set up on the camera control GUI window. The sync command tells the GUI to wait for all commands currently being executed (in this case, just the read) to be completed. The tele r command offsets the telescope, relative to the current position, by the specified amount in right ascension and declination. The save command tells the computer to save the individual exposures, starting from the second one (-f 2), in a single, integrated (i) file. Finally, the sync tele command waits for the telescope offset given earlier to be completed, before continuing with the next command in the macro. This is how one implements the double buffering, feature, which is explained in more detail below.

Depending on what observations are wanted, a full macro will usually consist of a number of these blocks, sometimes with initial and final telescope offsets which start and end the macro on a known reference position. Descriptions of all of the available macro commands are given below.

All macro files should have .mac as their extension: filename.mac

There are several macros available to download, e.g. standard star observing macros, though they should already be in Omega-Prime's default macro directory. Use them at your own risk...I know what they do because I wrote them! If you make any changes to the existing files in the object directory, please save the new version under a new name.

A complete description of the available commands is available as an HTML document or in gzipped Postscript [22 kB] format.Double buffering
It takes a considerable amount of time to transfer the data from the camera and save it to the hard-drive on the workstation. To reclaim some of this otherwise lost time, Omega-prime has been configured with two image buffers. Thus, a new image can be read out while the previous image is being saved. To implement this feature, the macros should be written as in the example above, with a sync tele after the telescope offset and save commands. The GUI will then only wait until the telescope move is completed before starting the next read (the save command may still be in progress). When observing in the K band, the increase in efficiency of observing (the fraction of time spent actually integrating on source) is significant. With 3 second integrations, 11 repeats, and saving images 2 through 11 as an integrated image, efficiency jumps from 33% to 40%.


Preparing Object Files

Object lists should be created in the following format:

    Object name | Alpha | Delta | Equinox | pm.A | pm.D | mag | comment

An example (from the Elias standards list):


HD 225023  0:00:11.8 |  35:32:14.0 |  1950|  0.0000|  -0.004|  6.96|  J=7.97
G158-27  0:04:12.0 |  -7:47:54.0 |  1950|  -0.056 |  -1.85 | 7.43|  J=9.31
HD 1160  0:13:23.1 |  3:58:24.0 |  1950|  0.006 |  -0.013|  7.04|  J=7.06
HD 3029  0:31:02.3 |  20:09:30.0 |  1950|  -0.0001|  0.011|  7.09|  J=7.25
Gl 105.5  2:38:07.6 |  0:58:57.0 |  1950|  0.0187|  0.242|  6.53|  J=8.24

Note that the | character is used as a separator between fields. The blank spaces are ignored by the GUI, and were used here to make the file easier to read when editing. Any otherwise empty fields should contain an asterisk (*) character as a place holder.

Only the first three fields are required, the others are optional. Proper motions should be expressed in units of arcsec/century.

There are several object files, e.g. the Elias standards and the UKIRT faint standard star lists, available to download, though they should already be on Omega-Prime's default object directory. If you make any changes to the existing files in the object directory, please save the new version under a new name.


Peter Bizenberger Dave Thompson
biz@mpia-hd.mpg.de djt@mpia-hd.mpg.de
Phone: +49 (6221) 528-311 Phone: +49 (6221) 528-224
